AMX102-US-1LF/U MIX VLV 1"SWEAT 90F-130F

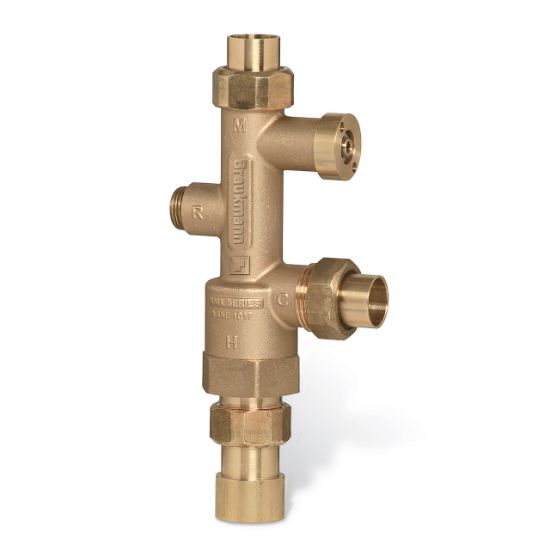

Resideo AMX102-US-1LF/U AMX Series Lead Free 150 psi 1 in. Sweat Mixing Valve
Manufacturer: Honeywell Home
$0.00
Designed to be installed directly on the water heater hot port. Dual purpose mixing or diverting valve. Constant water temperature under different operating conditions. Proportional valve (control of hot and cold water). Flow reduction in seconds if cold water supply is interrupted. Temperature adjustable using 3/16 in. Allen wrench (included). Union coupled tailpiece connections included. Heat trapping not required. Recirculation connection for fast response. Integral check valve on cold water port. Bronze/stainless construction. Teflon coated wear surfaces to prevent lime deposits. Maximum pressure differential between hot and cold ports is 7 psi (48 kPa).
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Bronze Tones
End Connection Sweat x Sweat
End Connection 1 Sweat
End Connection 2 Sweat
Height 10 in.
Lead Law Compliant Yes
Length 5 in.
Maximum Temperature 200
Pressure - Maximum 150 psi
Size 1 in.
Specifications - ASSE Standards ASSE 1017
Specifications - CSA Certified Yes
Specifications - IAPMO Listed Yes
Valve Size 1 in.
Origin Mexico
Product Type Hydronic Mixing Valves
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Material Bronze;Stainless
Minimum Temperature 33
Application Domestic water designed to be mounted directly on the water heater in Homes, Hotel, Schools. Hospitals, and Nursing Homes;Space heating;Radiant floor heating;Central distribution systems;Combo systems;Heat pump systems;Industrial applications
Valve Body Material Nickel-Plated Brass
Width 5 in.
Style Name AMX Series
