HONAT72D1006

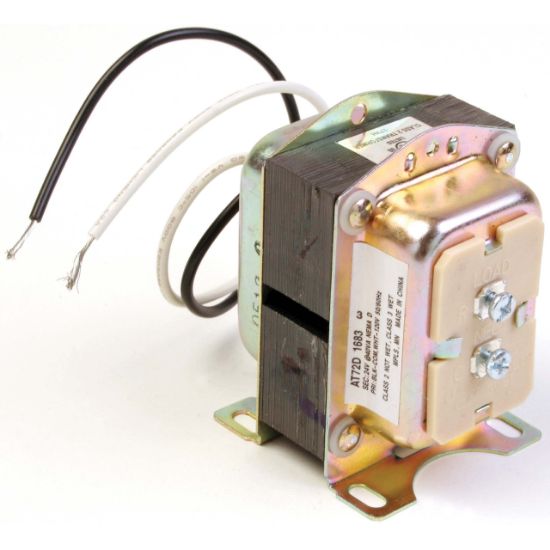

Honeywell AT72D1006/U Transformer, 120 VAC 50/60Hz Primary, 26.5V Secondary, 40 VA

Manufacturer: Honeywell Home

$0.00

Qty:

Transformer, AT72D Series, 2-7/32 in. Width, 3-7/32 in. Height, Depth: 1-1/16 in. into Plate, 2 in. above Plate, Specifications - UL Listed: Yes, 120 VAC Primary, 26.5V Secondary Volts, 40 VA Rating, Mounting Type: Plate, 50/60Hz Frequency Rating, Connection Type: 9 in. Wire Lead Primary, (2) Screw Terminal Secondary, Temperature Rating: -29 to 41C

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-7/32 in.
Height	3-7/32 po
Connection Type	9 in. Wire Lead Primary, (2) Screw Terminal Secondary
Depth	1-1/16 in. into Plate, 2 in. above Plate
Frequency Rating	50/60Hz
Motor Type	Plate
Specifications - UL Listed	Yes
Temperature Rating	-29 to 41C
VA Rating	40
Volts	120 VAC Primary, 26.5V Secondary
