HONL8148E1257

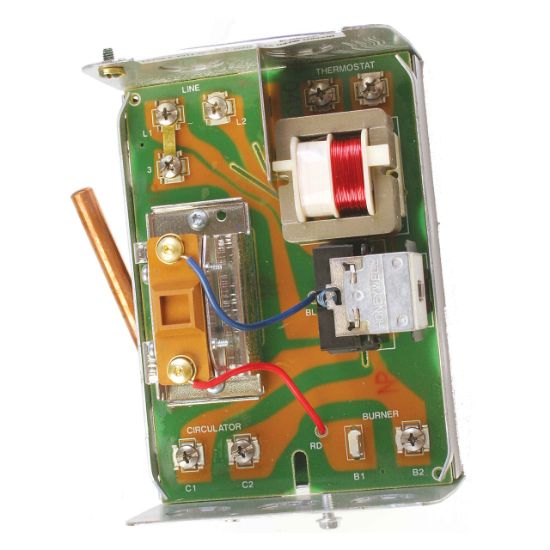

Honeywell Home L8148E1257/U Aquastat Relay, 140 - 240F High Limit
Manufacturer: Honeywell Home
$0.00
Aquastat Relay, 4-5/16 in. Width, 6-1/8 in. Height, Depth: 3-1/8 in., 4-1/2 in. Capillary Length, Temperature Range: 140 - 240F High Limit, 150F with 1.2A 24V Load, 77F with 1.4A 24V Load, Differential Temperature: 15F Fixed, Mounting Type: Vertical, AMP: 0.8A max. at 24VAC Low Voltage, 7.4A at 120 VAC, 3.7A at 240 VAC Line Voltage at Full Load Burner, 44.4A at 120 VAC, 22.7A at 240 VAC Line Voltage, 0.25A at 1/4 - 12 VDC at Locked Rotor Burner, 7.4A at 120 VAC, 3.7A at 240 VAC at Full Load Circulator, 44.4A at 120 VAC, 22.2A at 240 VAC at Locked Rotor Circulator, 0.2A Anticipator Setting, Switch Action: High Limit and Circulator SPST, 120 VAC Volts, Pressure Range: 255 psi Immersion Well, 60Hz Frequency Rating
Products specifications
products.specs.attributename products.specs.attributevalue
Width 4-5/16 in.
Height 6-1/8 in.
AMP 0.8A max. at 24VAC Low Voltage, 7.4A at 120 VAC, 3.7A at 240 VAC Line Voltage at Full Load Burner, 44.4A at 120 VAC, 22.7A at 240 VAC Line Voltage, 0.25A at 1/4 - 12 VDC at Locked Rotor Burner, 7.4A at 120 VAC, 3.7A at 240 VAC at Full Load Circulator, 44.4A at 120 VAC, 22.2A at 240 VAC at Locked Rotor Circulator, 0.2A Anticipator Setting
Capillary Length 4-1/2 in.
Depth 3-1/8 in.
Differential Temperature 15F Fixed
Frequency Rating 60Hz
Motor Type Vertical
Switch Action High Limit and Circulator SPST
Temperature Range 140 - 240F High Limit, 150F with 1.2A 24V Load, 77F with 1.4A 24V Load
Volts 120 VAC
