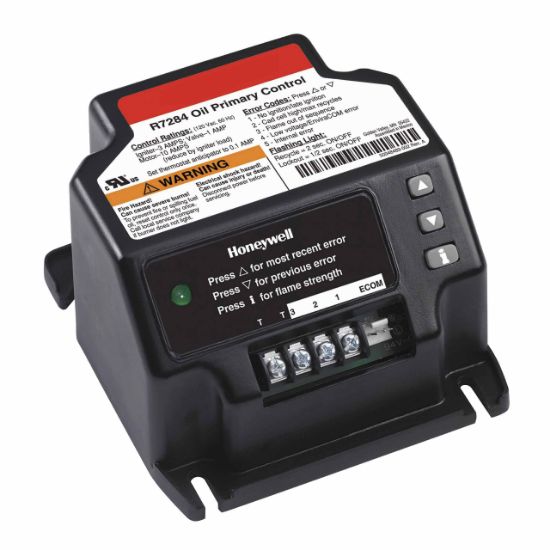

R7284B1024 UNIVERSAL DIGITAL ELECT. OIL

Honeywell Home R7284B1024 Universal Electronic Oil Primary Control, 120/240 VAC, 4-5/32 in. Lx 4-11/32 in. W x 2-1/2 in. H

Manufacturer: Honeywell Home

$0.00

Qty:

Universal Electronic Oil Primary Control, 4-5/32 in. Length, 4-11/32 in. Width, 2-1/2 in. Height, Temperature Rating: -40 to 147F, Installation Type: Junction Box on Main Burner, Electrical Connection: Burner Motor, Oil Valve, Ignition, Cad Cell, Limit, Thermostat, Alarm, Ignition Type: Interrupted, AMP: 7.4A at 120 VAC and 3.7A at 240 VAC Full Load; 44.4A at 120 VAC and 22.2A at 240 VAC Locked Rotor, 120/240 VAC Volts, Safety Switch Timing Range: 15 sec., LED Display

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-5/32 in.
Width	4-11/32 in.
Height	2-1/2 po
AMP	7.4A at 120 VAC and 3.7A at 240 VAC Full Load; 44.4A at 120 VAC and 22.2A at 240 VAC Locked Rotor
Display Type	LED
Electrical Connection	Burner Motor, Oil Valve, Ignition, Cad Cell, Limit, Thermostat, Alarm
Ignition Type	Interrupted
Temperature Rating	-40 to 147F
Volts	120/240 VAC
