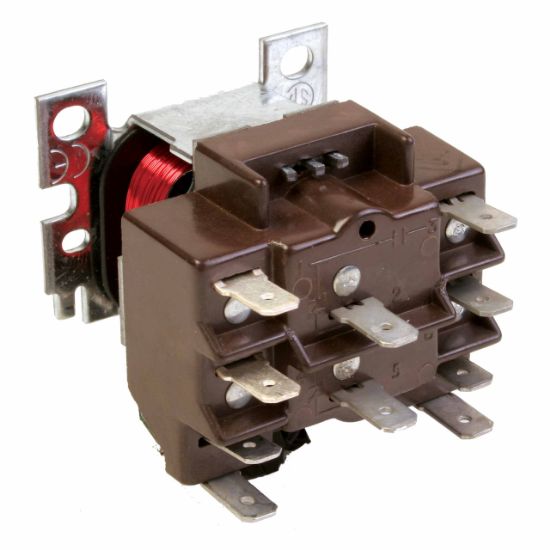

Picture of R8222B1067 DOUBLE QC COIL SPDT

R8222B1067 DOUBLE QC COIL SPDT

Honeywell Home R8222B1067/U General Purpose Relay, SPDT, 24 VAC

Manufacturer: Honeywell Home

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-5/32 in.
Height	1-7/8 po
Configuration	SPDT
Connection Type	1/4 in. Quick Connect Terminal
Contact Rating	AFL: 3A at 480 VAC, 6A at 208, 240, 277 VAC, 12A at 120 VAC, ALR: 18A at 480 VAC, 35A at 208, 240, 277 VAC, 60 A at 120 VAC, Resistive: 10A at 480 VAC, 20.8A at 120, 208, 240, 277, 24 VAC
Depth	2-3/8 in.
Frequency Rating	50/60Hz
Pilot Duty Rating	Minimum: 3 VA at 24 VAC, 120 and 480 VAC, Maximum: 25 VA at 24 VAC, 125 VA at 120 VAC, 240 and 480 VAC, Resistive: 3A at 277 VAC (0.75 power factor), PowerPile: (Normally Open Contacts Only) 0.25A at 0.25 - 12 VDC
Specifications - UL Listed	Yes
Temperature Rating	-29 to 68C
Volts	24 VAC
