HONR8228B1012

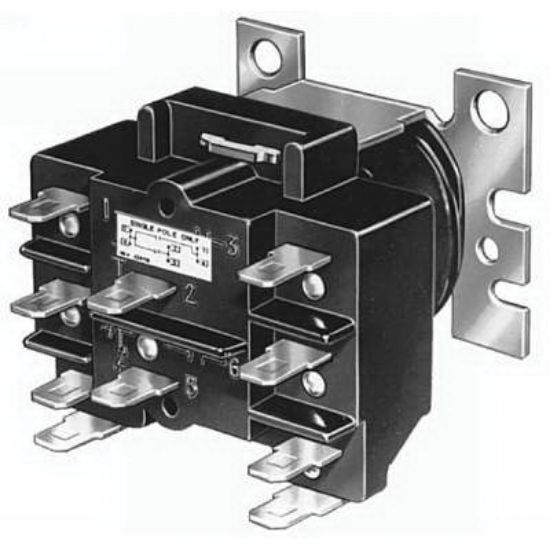

Honeywell Home R8228B1012/U General Purpose Relay, SPDT, 24 VAC

Manufacturer: Honeywell Home

$0.00

Qty:

General Purpose Relay, R8228B Series, 2-5/32 in. Width, 1-7/8 in. Height, Depth: 2-3/8 in., Specifications - UL Listed: Yes, 24 VAC Volts, Contact Rating: AFL: 5A at 480 VAC, 12A at 277 VAC, 18A at 208, 240 VAC, 16/18A at 120 VAC, ALR: 30A at 480 VAC, 72A at 208, 240, 277 VAC, 96/72A at 120 VAC, Resistive: 12.5A at 480 VAC, 25A at 120, 208, 240, 277 VAC, SPDT Configuration, Temperature Rating: -29 to 68C, Connection Type: 1/4 in. Quick Connect Terminal, 50/60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-5/32 in.
Height	1-7/8 po
Configuration	SPDT
Connection Type	1/4 in. Quick Connect Terminal
Contact Rating	AFL: 5A at 480 VAC, 12A at 277 VAC, 18A at 208, 240 VAC, 16/18A at 120 VAC, ALR: 30A at 480 VAC, 72A at 208, 240, 277 VAC, 96/72A at 120 VAC, Resistive: 12.5A at 480 VAC, 25A at 120, 208, 240, 277 VAC
Depth	2-3/8 in.
Frequency Rating	50/60Hz
Specifications - UL Listed	Yes
Temperature Rating	-29 to 68C
Volts	24 VAC
