HONR8229A1005

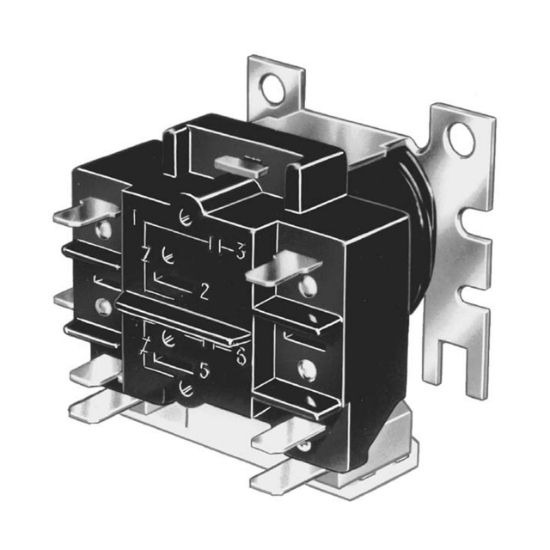

Honeywell Home R8229A1005/U Electric Heater Relay, DPST, 24 VAC

Manufacturer: Honeywell Home

$0.00

Qty:

Electric Heater Relay, R8229A Series, 2-3/32 in. Width, 2-3/16 in. Height, Depth: 2-1/4 in., Specifications - UL Listed: Yes, 24 VAC Volts, Contact Rating: AFL: 2.8A at 600 VAC, 3.5A at 480 VAC, 7A at 120, 208, 240, 277 VAC, ALR: 14A at 600 VAC, 17.5A at 480 VAC, 35A at 120, 208, 240, 277 VAC, Resistive: 10A at 600 VAC, 12.5A at 480 VAC, 25A at 120, 208, 240, 277 VAC, DPST Configuration, Temperature Rating: -40 to 74C, Connection Type: #10 Combination Head Screw, 60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-3/32 in.
Height	2-3/16 po
Configuration	DPST
Connection Type	#10 Combination Head Screw
Contact Rating	AFL: 2.8A at 600 VAC, 3.5A at 480 VAC, 7A at 120, 208, 240, 277 VAC, ALR: 14A at 600 VAC, 17.5A at 480 VAC, 35A at 120, 208, 240, 277 VAC, Resistive: 10A at 600 VAC, 12.5A at 480 VAC, 25A at 120, 208, 240, 277 VAC
Depth	2-1/4 in.
Frequency Rating	60Hz
Specifications - UL Listed	Yes
Temperature Rating	-40 to 74C
Volts	24 VAC
