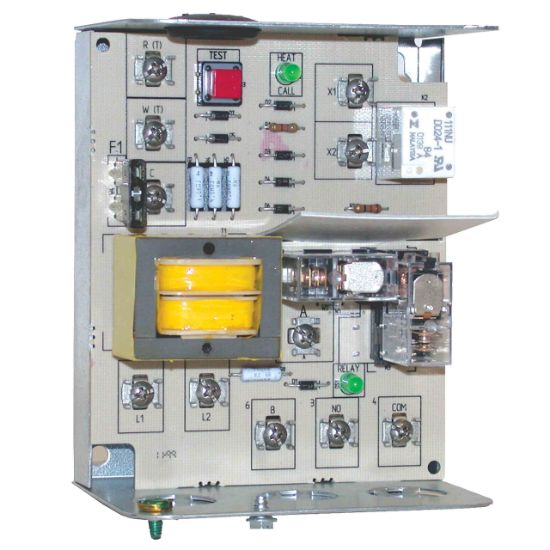

Picture of R8845U1003 ENCLOSED SWITCHING RELAY

R8845U1003 ENCLOSED SWITCHING RELAY

Resideo R8845U1003/U 120/240V Zinc-Plated Steel Universal Switching Relay
Manufacturer: Honeywell Home
$0.00
Universal Switching Relay, 4-7/16 in. Width, 6-1/4 in. Height, Steel, Specifications - UL Listed: Yes, Temperature Rating: -20 to 120 F Ambient, Colour/Finish Name: Zinc-Plated, Depth: 3-1/2 in., 120V Input, 24 VAC Coil Volts, 60Hz Frequency Rating, AMP: 0.4A Coil, (2) SPST Configuration, Contact Rating: AFL: 7.4A, 44.4A at 120 VAC
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 0.4
Colour/Finish Category Neutrals
Colour/Finish Name Zinc-Plated
Depth 3-1/2 in.
Height 6-1/4 in.
Length 3-1/2 in.
Material Steel
Specifications - CSA Certified CSA Guide No. XAPX7
Specifications - UL Listed UL Listed: File No. E4436;Guide No. XAPX
Temperature Rating -20 to 120 Deg F
Volts 120/240V
Width 4-7/16 in.
Application Enclosed Universal switching relay with internal transformer for 24 volt 2 or 3 wire thermostat control of line voltage devices
Product Type Relays
Temperature Range -20 to 120 Deg F
