SV9510M2511 1/2 X 1/2 PILOT

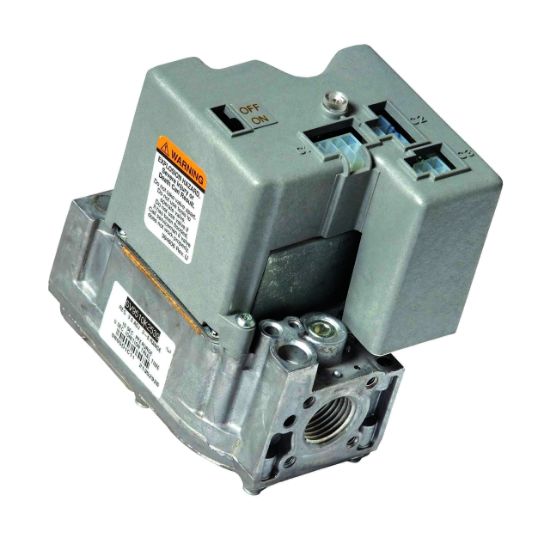

Honeywell Home SmartValve SV9510M2511/U Gas Valve, Natural Gas, 1/2 x 1/2 in. NPT, 24 VAC, 3.5 in. WC

Manufacturer: Honeywell Home

$0.00

Qty:

SmartValve Gas Valve, 4.1 in. Length, 3.2 in. Width, 4.9 in. Height, 150000 btu/hr at 1 in. P.D., 20000 btu/hr Minimum, 200000 btu/hr Maximum BTU, Inlet/Outlet: 1/2 x 1/2 in. NPT, 24 VAC Volts, Temperature Rating: -40 to 175F, 1/2 psi Pressure Rating, Fuel Type: Natural Gas (LP Gas with Included Conversion Kit), Body Pattern: Straight-Through, Ignition Type: Direct Hot Surface, Pressure Regulator Setpoint: 3.5 in. WC, 1/8 in. NPT Pressure Tapping, Mounting Type: 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically, Standard Pressure Regulator, Opening Characteristic: Standard Opening, 50/60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4.1 in.
Width	3.2 in.
Height	4.9 in.
Body Pattern	Straight-Through
BTU	150000 btu/hr at 1 in. P.D., 20000 btu/hr Minimum, 200000 btu/hr Maximum
Frequency Rating	50/60Hz
Fuel Type	Natural Gas (LP Gas with Included Conversion Kit)
Ignition Type	Direct Hot Surface
Inlet/Outlet	1/2 x 1/2 in. NPT
Motor Type	0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically
Pressure Rating	1/2 psi
Pressure Regulator	Standard
Pressure Regulator Setpoint	3.5 in. WC
Pressure Tapping	1/8 in. NPT
Temperature Rating	-40 to 175F
Volts	24 VAC
