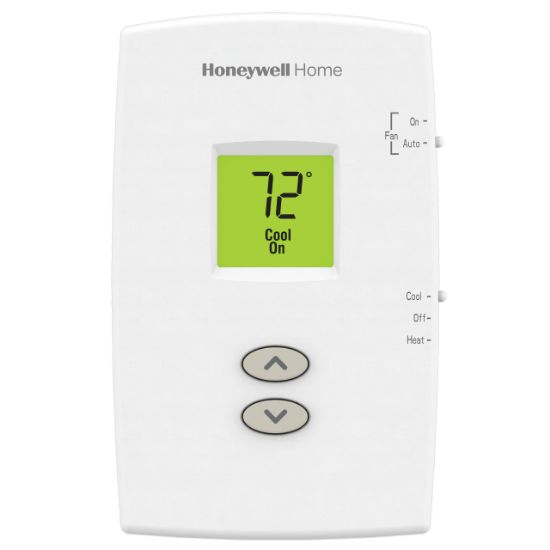

TH1110DV1009 PRO1000 H/C THERMOSTAT

Honeywell Home TH1110DV1009/U Premier WhNon-Programmable Thermostat, 1H/1C, 20 - 30 VAC, 750 mV

Manufacturer: Honeywell Home

$0.00

Qty:

Non-Programmable Thermostat, PRO 1000 Series, 2-7/8 in. Width, 4-11/16 in. Height, Colour/Finish Name: Premier White, Depth: 1-1/8 in., Dual Powered - Battery or Hardwire Power Source, Programmability: Non-Programmable, Stages: 1H/1C, 20 - 30 VAC, 750 mV Volts, Manual Changeover, Cycles per Hour: 2 - 6 Heating and Cooling, Humidity Range: 5 - 90% RH Non-Condensing, Setting Temperature Range: 4.5 - 32C Heat, 10 - 37C Cool, Switch Position: OFF-HEAT-COOL, AUTO-ON Fan, 1.32 sq-in Display, Mounting Type: Vertical, Terminal Designations: R, Rc, C, W, Y, G, O, B, 50/60Hz Frequency Rating, Heat Current: 0.02 - 1A Running, Cool Current: 0.02 - 1A Running

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	2-7/8 in.
Height	4-11/16 po
Changeover	Manual
Colour/Finish Name	Premier White
Cool Current	0.02 - 1A Running
Cycles per Hour	2 - 6 Heating and Cooling
Depth	1-1/8 in.
Display Size	1.32 sq-in
Frequency Rating	50/60Hz
Heat Current	0.02 - 1A Running
Humidity Range	5 - 90% RH Non-Condensing
Motor Type	Vertical
Power Source	Dual Powered - Battery or Hardwire
Programmability	Non-Programmable
Setting Temperature Range	4.5 - 32C Heat, 10 - 37C Cool
Stages	1H/1C
Switch Position	OFF-HEAT-COOL, AUTO-ON (Fan)
Terminal Designations	R, Rc, C, W, Y, G, O, B
Volts	20 - 30 VAC, 750 mV
