Picture of HONTH6220U2000

HONTH6220U2000

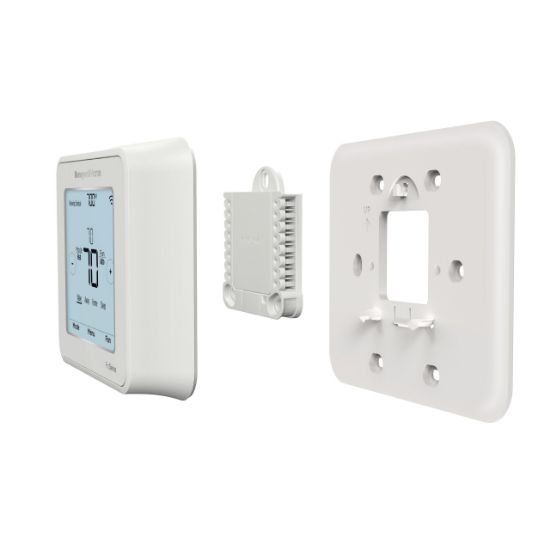

Honeywell Home TH6220U2000/U Y6 Pro 2H/1C or 2H/2C Programmable Thermostat, 20-30 VAC

Manufacturer: Honeywell Home

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-1/16 in.
Width	4-1/16 in.
Accuracy	0.5C
Changeover	Auto or Manual
Depth	1-3/32 in.
Display Size	5.44 sq-in
Fan Current	0.02 - 0.05A
Heat Current	0.02 - 1A
Humidity Range	5 - 90% RH Non-Condensing
Motor Type	UWP Mounting System
Power Source	Battery or Hardwired
Programmability	7, 5-1-1, 5-2 day or Non-Programmable
Setting Temperature Range	40 - 90F Heat, 50 - 99F Cool
Stages	Up to 2H/1C Heat Pumps or Up to 2H/2C Conventional Systems
Switch Position	HEAT-OFF-COOL-AUTO-EM.HEAT, AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
Switch Type	Relay
Temperature Range	37 - 102F
Terminal Designations	Rc, R, C, W, W2 - AUX, Y, Y2, O/B, G, K, E, L/A, S, S
Volts	20 - 30 VAC
