HONTH8110R1008

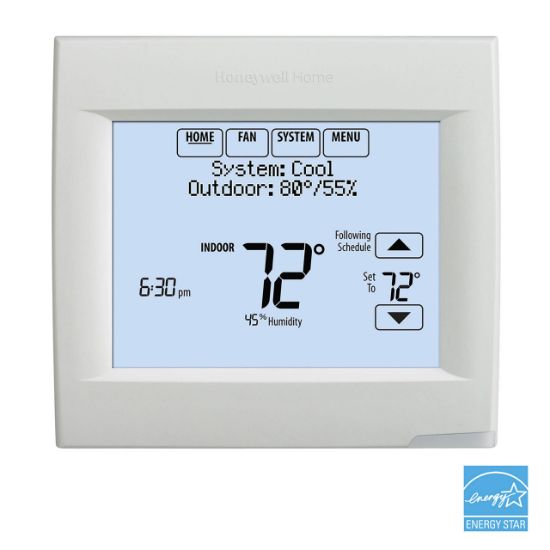

Honeywell Home TH8110R1008/U VisionPRO 8000 7 Day Programmable Thermostat 1H/1C 18 - 30 VAC 750 mV

Manufacturer: Honeywell Home

$0.00

Qty:

Programmable Thermostat, VisionPRO 8000 Series, 4-15/16 in. Width, 4-5/8 in. Height, Colour/Finish Name: Arctic White, Depth: 1-1/8 in., Battery or Hardwired Power Source, 7 day Program or Non-Programmable Programmability, Stages: 1H/1C Conventional Systems and Heat Pumps, 18 - 30 VAC, 750 mV Volts, Auto or Manual Changeover, 5 - 90% RH Non-Condensing Humidity Range, 40 - 90F Heat, 50 - 99F Cool Setting Temperature Range, Temperature Range: 32 - 120F, HEAT-OFF-COOL-AUTO, AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan) Switch Position, 10 sq-in Touchscreen Display Type, R, Rc, C, W-O/B, Y, G, K, S1 S1 Terminal Designations, Screw Terminals Electrical Connection, 50/60Hz Frequency Rating, VisionPro 8000 Thermostat, RedLink Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSteam Humidifier with Wireless Adapter and TrueZone Zoning Panel with Wireless Adapter Includes, G: 0.5A Fan Current, Y: 1A Cool Current

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4-15/16 in.
Height	4-5/8 po
Changeover	Auto or Manual
Colour/Finish Name	Arctic White
Cool Current	Y: 1A
Depth	1-1/8 in.
Display Type	10 sq-in Touchscreen
Electrical Connection	Screw Terminals
Fan Current	G: 0.5A
Frequency Rating	50/60Hz
Humidity Range	5 - 90% RH Non-Condensing
Power Source	Battery or Hardwired
Programmability	7 day Program or Non-Programmable
Setting Temperature Range	40 - 90F Heat, 50 - 99F Cool
Stages	1H/1C Conventional Systems and Heat Pumps
Switch Position	HEAT-OFF-COOL-AUTO, AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
Temperature Range	32 - 120F
Terminal Designations	R, Rc, C, W-O/B, Y, G, K, S1 S1
Volts	18 - 30 VAC, 750 mV
