HONTH8321R1001

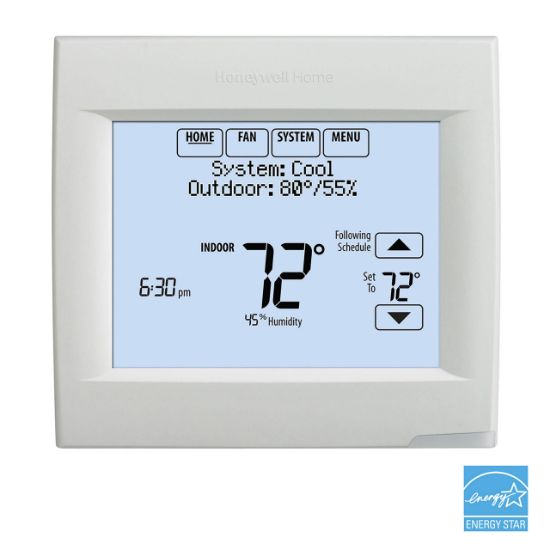

Programmable Thermostat, VisionPRO 8000 Series, 4-15/16 in. Width, 4-5/8 in. Height, Colour/Finish Name: Arctic White, Depth: 1-1/8 in., Battery or Hardwired Power Source, 7 day Program or Non-Programmable Programmability, Stages: Up to 2H/2C Conventional Systems or Up to 3H/2C Heat Pumps, 18 - 30 VAC, 750 mV Volts, Auto or Manual Changeover, 5 - 90% RH Non-Condensing Humidity Range, 40 - 90F Heat, 50 - 99F Cool Setting Temperature Range, Temperature Range: 32 - 120F, HEAT-OFF-COOL-AUTO-EM.HEAT, AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan) Switch Position, 10 sq-in Touchscreen Display Type, R, Rc, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1 Terminal Designations, Screw Terminals Electrical Connection, 50/60Hz Frequency Rating, VisionPro 8000 Thermostat, RedLink Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSteam Humidifier with Wireless Adapter and TrueZone Zoning Panel with Wireless Adapter Includes, W2(AUX): 0.6A Heat Current, G: 0.5A Fan Current, Y: 1A, Y2: 0.6A Cool Current
