HONTH8321WF1001

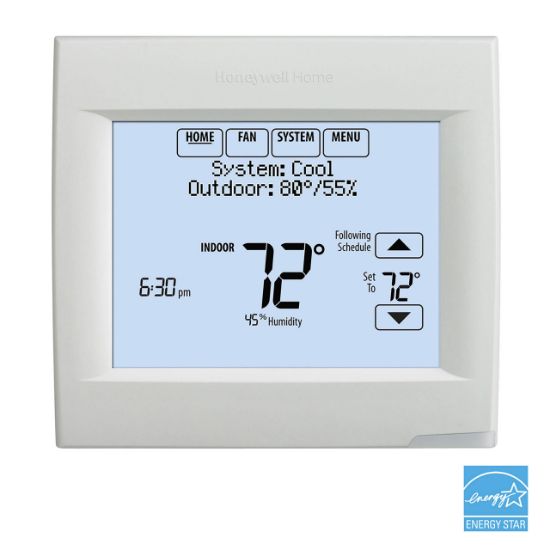

Honeywell Home TH8321WF1001/U Arctic WhWi-Fi 7 Day Programmable Thermostat, 3H/2C or 2H/2C, 18 - 30 VAC

Manufacturer: Honeywell Home

$0.00

Qty:

Wi-Fi Programmable Thermostat, VisionPRO 8000 Series, 4-15/16 in. Width, 4-5/8 in. Height, Colour/Finish Name: Arctic White, Depth: 1-1/8 in., Hardwired Power Source, 7 day Program or Non-Programmable Programmability, Stages: Up to 3H/2C Heat Pumps or Up to 2H/2C Conventional Systems, 18 - 30 VAC Volts, Thermistor Sensor Element, Auto or Manual Changeover, 10 - 60% RH Humidity Range, 40 - 90F Heat, 50 - 99F Cool Setting Temperature Range, Temperature Range: 32 - 120F, SPST, Relay Switch Type, HEAT-OFF-COOL-AUTO-EM.HEAT, AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan) Switch Position, 10 sq-in Touchscreen Display Type, R, Rc, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1 Terminal Designations, Screw Terminals Electrical Connection, 50/60Hz Frequency Rating, Wi-Fi VisionPro 8000 Thermostat Includes, W2(AUX): 0.6A Heat Current, G: 0.5A Fan Current, Y: 1A, Y2: 0.6A Cool Current

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4-15/16 in.
Height	4-5/8 po
Changeover	Auto or Manual
Colour/Finish Name	Arctic White
Cool Current	Y: 1A, Y2: 0.6A
Depth	1-1/8 in.
Display Type	10 sq-in Touchscreen
Electrical Connection	Screw Terminals
Fan Current	G: 0.5A
Frequency Rating	50/60Hz
Heat Current	W2(AUX): 0.6A
Humidity Range	10 - 60% RH
Power Source	Hardwired
Programmability	7 day Program or Non-Programmable
Sensor Element	Thermistor
Setting Temperature Range	40 - 90F Heat, 50 - 99F Cool
Stages	Up to 3H/2C Heat Pumps or Up to 2H/2C Conventional Systems
Switch Position	HEAT-OFF-COOL-AUTO-EM.HEAT, AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
Switch Type	SPST, Relay
Temperature Range	32 - 120F
Terminal Designations	R, Rc, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
Volts	18 - 30 VAC
