HONTHM5421R1021

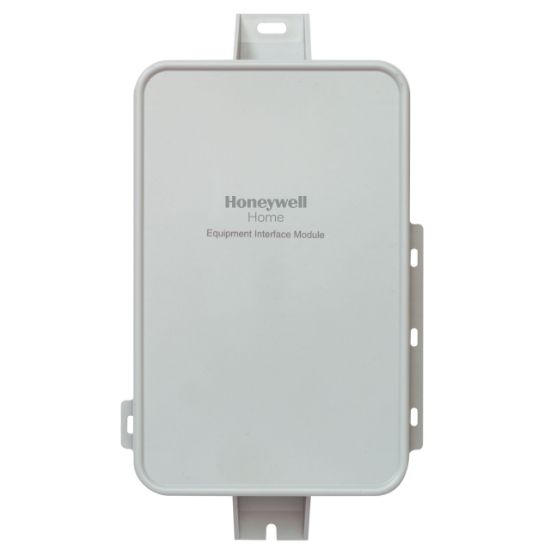

Honeywell Home THM5421R1021/U Grey Equipment Interface Module, 3H/2C or 2H/2C, 18 - 30 VAC
Manufacturer: Honeywell Home
$0.00
Equipment Interface Module, 4-13/16 in. Width, 9-5/16 in. Height, Colour/Finish Name: Grey, Hardwired Power Source, 18 - 30 VAC Volts, Depth: 1-5/8 in., 5 - 95% RH Non-Condensing Humidity Range, Temperature Range: -40 to 165F, R, Rc, Rh, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D Terminal Designations, Stages: Up to 4H/2C Heat Pumps or Up to 3H/2C Conventional Systems, 50/60Hz Frequency Rating, 1A Running Heat Current, 0.5A Running Fan Current, 1A Running Cool Current, Screw Terminals Electrical Connection
Products specifications
products.specs.attributename products.specs.attributevalue
Width 4-13/16 in.
Height 9-5/16 po
Colour/Finish Name Grey
Cool Current 1A Running
Depth 1-5/8 in.
Electrical Connection Screw Terminals
Fan Current 0.5A Running
Frequency Rating 50/60Hz
Heat Current 1A Running
Humidity Range 5 - 95% RH Non-Condensing
Power Source Hardwired
Stages Up to 4H/2C Heat Pumps or Up to 3H/2C Conventional Systems
Temperature Range -40 to 165F
Terminal Designations R, Rc, Rh, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D
Volts 18 - 30 VAC
