HONV110E1004

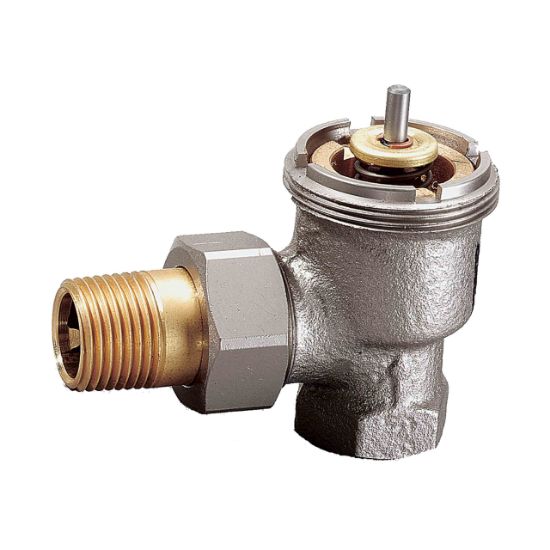

Honeywell Home V110E1004/U Nickel/Plated Bronze High Capacity Thermostatic Angle Radiator Valve, 1/2 in., Threaded x Threaded, 15 psi Steam, 150 psi Hot Water

Manufacturer: Honeywell Home

$0.00

Qty:

High Capacity Thermostatic Angle Radiator Valve, V110E Series, Material: Bronze, End Connection 1: Threaded, End Connection 2: Threaded, Maximum Temperature: 248F, Pressure - Maximum: 15 psi Steam, 150 psi Hot Water, EPDM Valve Disc, Valve Size: 1/2 in., 4.6 Flow Co-Efficient (Cv), 127000 btu/hr BTU, Colour/Finish Name: Nickel-Plated, Dimension: 2-9/16 in. Centre to Side, 1 in. Centre to Bottom

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Bronze
BTU	127000 btu/hr
Colour/Finish Name	Nickel-Plated
Dimension	2-9/16 in. Centre to Side, 1 in. Centre to Bottom
End Connection 1	Threaded
End Connection 2	Threaded
Flow Co-Efficient (Cv)	4.6
Maximum Temperature	248F
Pressure - Maximum	15 psi Steam, 150 psi Hot Water
Valve Disc Material	EPDM
Valve Size	1/2 in.
