HONV8043A1029

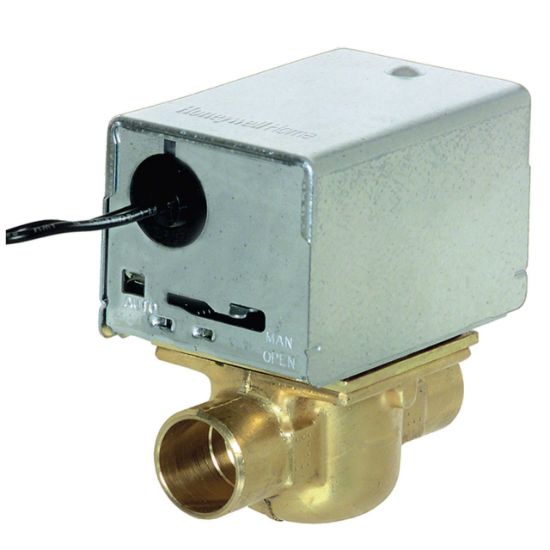

Honeywell Home V8043A1029/U Brass 2-Way Normally Closed Low Voltage Zone Valve, 3/4 in., Sweat, 0.32A, 24 VAC, 50/60Hz, 20 psi Differential, 125 psi Static
Manufacturer: Honeywell Home
$0.00
2-Position Normally Closed Low-Voltage Zone Valve, 1000 Series, 3-1/2 in. Width, 4 in. Height, Brass, AMP: 0.32A, Depth: 2-3/8 in., End Connection 1: Sweat, Pressure - Maximum: 20 psi Differential, 125 psi Static, Valve Size: 3/4 in., 24 VAC Volts, 50/60Hz Frequency Rating, 5 - 95% RH Non-Condensing Environmental Conditions, 7.7 VA Power Consumption, 15 sec. Nominal Open Timing Range, Temperature Range: 125F Ambient, 50 - 200F Fluid, 2-Way, Straight-Through Body Pattern, 3.5 Flow Co-Efficient (Cv), 18 in. Leadwire Electrical Connection
Products specifications
products.specs.attributename products.specs.attributevalue
Width 3-1/2 in.
Height 4 po
Material Brass
AMP 0.32A
Body Pattern 2-Way, Straight-Through
Depth 2-3/8 in.
Electrical Connection 18 in. Leadwire
End Connection 1 Sweat
Environmental Conditions 5 - 95% RH Non-Condensing
Flow Co-Efficient (Cv) 3.5
Frequency Rating 50/60Hz
Power Consumption 7.7 VA
Pressure - Maximum 20 psi Differential, 125 psi Static
Temperature Range 125F Ambient, 50 - 200F Fluid
Timing Range 15 sec. Nominal Open
Valve Size 3/4 in.
Volts 24 VAC
