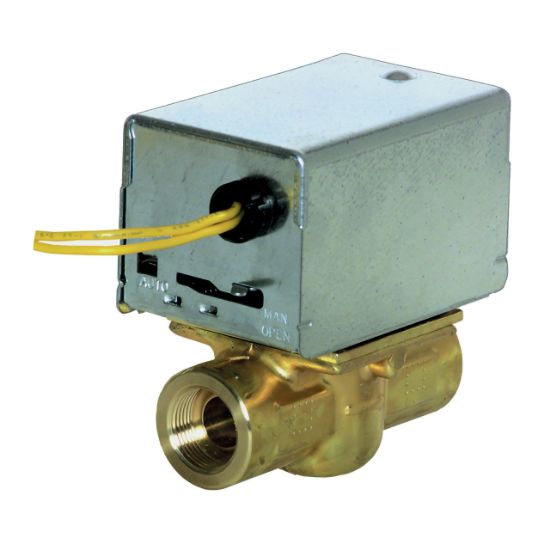

V8043C3310 ZONE VALVE

Honeywell Home V8043C3310/U Brass 2-Position Normally Closed Zone Valve, 1/2 in. Flare, 24 VAC, 0.32A, 60Hz, 20 psi Differential, 300 psi Static

Manufacturer: Honeywell Home

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2-3/8 in.
Width	3-11/16 in.
Height	4 po
Material	Brass
AMP	0.32A
Body Pattern	2-Way, Straight-Through
Electrical Connection	18 in. Leadwire
End Connection 1	Flare
Environmental Conditions	5 - 95% RH Non-Condensing
Flow Co-Efficient (Cv)	3.5
Frequency Rating	60Hz
Power Consumption	7.7 VA
Pressure - Maximum	20 psi Differential, 300 psi Static
Temperature Range	125F Ambient, 50 - 200F Fluid
Timing Range	15 sec. Nominal Open
Valve Size	1/2 in.
Volts	24 VAC
