Picture of V8043D1239 ZONE VALVE

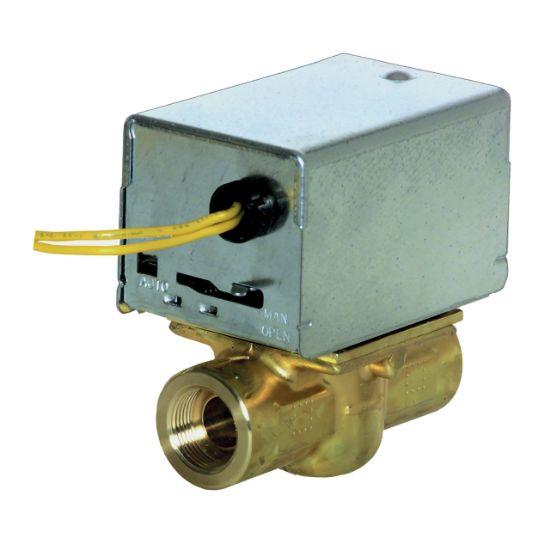

V8043D1239 ZONE VALVE

Honeywell Home V8043D1239/U 1/2 in. Flare 24VAC Normally Open Zone Valve
Manufacturer: Honeywell Home
$0.00
2-Position Normally Open Zone Valve, 5000 Series, 2-3/8 in. Length, 3-5/8 in. Width, 4 in. Height, Material: Brass, AMP: 0.32A, End Connection 1: Flare, Pressure - Maximum: 20 psi Differential, 125 psi Static, Valve Size: 1/2 in., 24 VAC Volts, 50/60Hz Frequency Rating, Environmental Conditions: 5 - 95% RH Non-Condensing, 7.7 VA Power Consumption, 15 sec. Nominal Open Timing Range, Temperature Range: 125F Ambient, 40 - 200F Fluid, Body Pattern: 2-Way, Straight-Through, 3.5 Flow Co-Efficient (Cv), Electrical Connection: 18 in. Leadwire
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 0.32
End Connection Flared x Flared
End Connection 1 Flared
End Connection 2 Flared
Height 4 in.
Length 2-3/8 in.
Material Brass
Maximum Temperature 200
Pressure - Maximum 125 psi
Size 1/2 in..
Specifications - CSA Certified CSA Certified: File 1322
Valve Body Style 2-Way
Valve Operator 2-Way
Valve Seat Material Brass
Valve Size 1/2 in.
Volts 24V
Width 3-5/8 in.
Origin Import
Product Type Hydronic Zone Valves
Specifications - UL Listed Yes
Style Name 5000 Series
Valve Type Zone Valve
Application Hydronic Control
Valve Body Material Brass
Colour/Finish Category Brass Tones
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Valve Stem Stainless Steel
Minimum Temperature 40
