HONV8043E1012

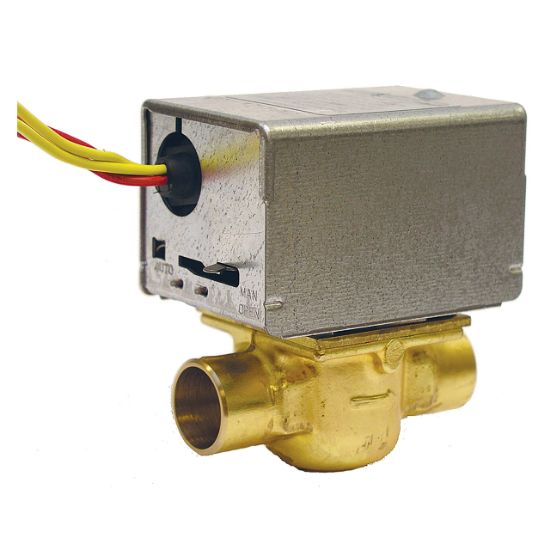

Honeywell Home V8043E1012/U Brass 2-Position Normally Closed Zone Valve, 3/4 in. Sweat, 24 VAC, 0.32A, 50/60Hz, 20 psi Differential, 125 psi Static

Manufacturer: Honeywell Home

$0.00

Qty:

2-Position Normally Closed Zone Valve, 5000 Series, 2-3/8 in. Length, 3-1/2 in. Width, 4 in. Height, Material: Brass, AMP: 0.32A, End Connection 1: Sweat, Pressure - Maximum: 20 psi Differential, 125 psi Static, Valve Size: 3/4 in., 24 VAC Volts, 50/60Hz Frequency Rating, Environmental Conditions: 5 - 95% RH Non-Condensing, 7.7 VA Power Consumption, 15 sec. Nominal Open Timing Range, Temperature Range: 125F Ambient, 50 - 200F Fluid, Body Pattern: 2-Way, Straight-Through, 3.5 Flow Co-Efficient (Cv), Electrical Connection: 18 in. Leadwire

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2-3/8 in.
Width	3-1/2 in.
Height	4 in.
Material	Brass
AMP	0.32A
Body Pattern	2-Way, Straight-Through
Electrical Connection	18 in. Leadwire
End Connection 1	Sweat
Environmental Conditions	5 - 95% RH Non-Condensing
Flow Co-Efficient (Cv)	3.5
Frequency Rating	50/60Hz
Power Consumption	7.7 VA
Pressure - Maximum	20 psi Differential, 125 psi Static
Temperature Range	125F Ambient, 50 - 200F Fluid
Timing Range	15 sec. Nominal Open
Valve Size	3/4 in.
Volts	24 VAC
