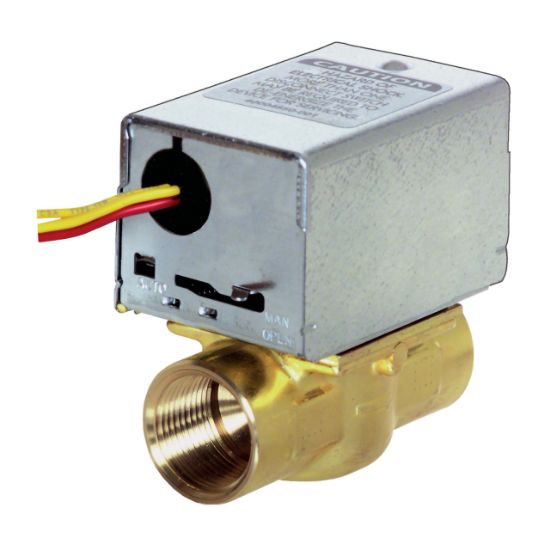

1" I.P. N/C ZONE VALVE

Honeywell Home V8043E1137/U Brass 2-Position Normally Closed Zone Valve, 1 in. Threaded, 24 VAC, 0.32A, 50/60Hz, 6.5 psi Differential, 125 psi Static

Manufacturer: Honeywell Home

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2-3/8 in.
Width	3-23/32 in.
Height	4 po
Material	Brass
AMP	0.32A
Body Pattern	2-Way, Straight-Through
Electrical Connection	18 in. Leadwire
End Connection 1	Threaded
Environmental Conditions	5 - 95% RH Non-Condensing
Flow Co-Efficient (Cv)	10
Frequency Rating	50/60Hz
Power Consumption	7.7 VA
Pressure - Maximum	6.5 psi Differential, 125 psi Static
Temperature Range	125F Ambient, 50 - 200F Fluid
Timing Range	15 sec. Nominal Open
Valve Size	1 in.
Volts	24 VAC
