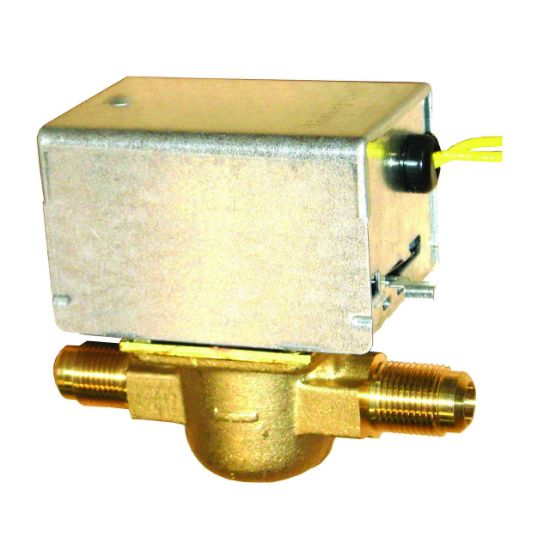

V8043G1034 ZONE VALVE

Honeywell Home V8043G1034/U Brass 2-Way Normally Closed Zone Valve, 3/8 in. Flared, 0.32A, 24V, 50/60Hz, 20 psi Differential, 125 psi Static
Manufacturer: Honeywell Home
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Length 4-11/16 in.
Width 2-3/8 in.
Height 4 po
Material Brass
AMP 0.32A
Body Pattern 2-Way, Straight-Through
Electrical Connection 18 in. Leadwire
End Connection 1 Flared
Environmental Conditions 5 - 95% RH Non-Condensing
Flow Co-Efficient (Cv) 3.5
Frequency Rating 50/60Hz
Power Consumption 7.7 VA
Pressure - Maximum 20 psi Differential, 125 psi Static
Temperature Range 125F Ambient, 50 - 200F Fluid
Timing Range 15 sec. Nominal Open
Valve Size 3/8 in.
Volts 24V
