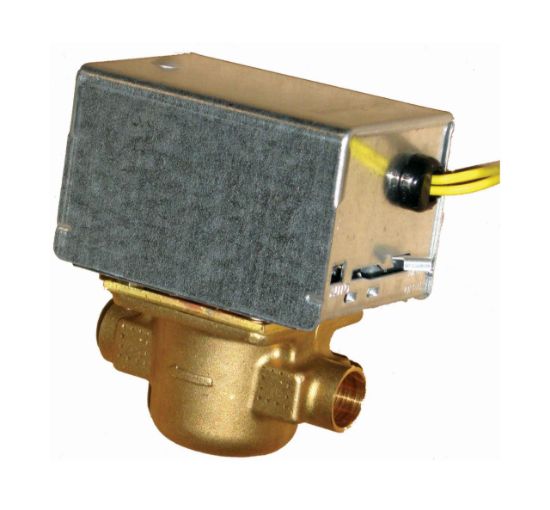

Picture of V8043G1109 ZONE VALVE

V8043G1109 ZONE VALVE

Honeywell Home V8043G1109/U 3/4 in. NPT 24VAC Normally Closed Zone Valve
Manufacturer: Honeywell Home
$0.00
2-Position Normally Closed Zone Valve, 5000 Series, 3-23/32 in. Length, 2-3/8 in. Width, 4 in. Height, Brass, End Connection 1: NPT, Pressure - Maximum: 20 psi Differential, 125 psi Static, Valve Size: 3/4 in., Temperature Range: 125F Ambient, 50 - 200F Fluid, 24V Volts, 50/60Hz Frequency Rating, AMP: 0.32A, Electrical Connection: 18 in. Leadwire, 15 sec. Nominal Open Timing Range, Environmental Conditions: 5 - 95% RH Non-Condensing, 3.5 Flow Co-Efficient (Cv), Body Pattern: 2-Way, Straight-Through, 7.7 VA Power Consumption
Products specifications
products.specs.attributename products.specs.attributevalue
AMP 0.32
End Connection NPT x NPT
End Connection 1 NPT
End Connection 2 NPT
Height 4 in.
Length 3-23/32 in.
Material Brass
Maximum Temperature 200
Pressure - Maximum 125 psi
Size 3/4 in..
Specifications - CSA Certified CSA Certified: File 1322
Valve Body Style 2-Way
Valve Operator 2-Way
Valve Seat Material Brass
Valve Size 3/4 in.
Volts 24V
Width 2-3/8 in.
Origin Import
Product Type Hydronic Zone Valves
Depth 2-3/8 in.
Specifications - UL Listed Yes
Style Name 5000 Series
Valve Type Zone Valve
Application Hydronic Control
Valve Body Material Brass
Colour/Finish Category Brass Tones
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Valve Stem Stainless Steel
Minimum Temperature 50
