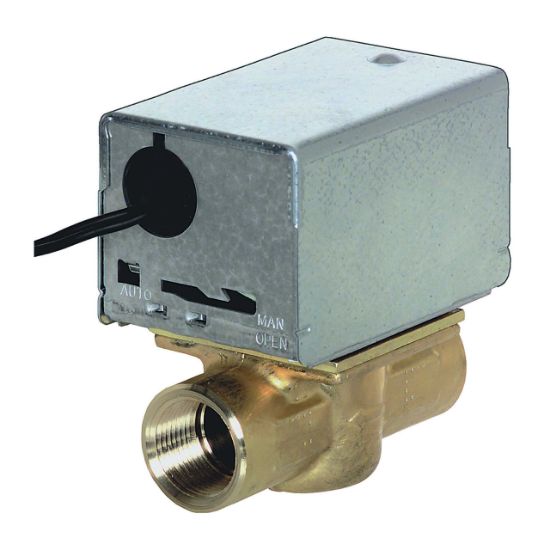

V8043J1037 3/4 NPT VALVE

Honeywell Home V8043J1037/U Brass 2-Position Normally Opened Zone Valve, 3/4 in. Threaded, 24 VAC, 0.42A, 50/60Hz, 20 psi Differential, 125 psi Static

Manufacturer: Honeywell Home

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2-3/8 in.
Width	3-23/32 in.
Height	4 po
Material	Brass
AMP	0.42A
Body Pattern	2-Way, Straight-Through
Electrical Connection	18 in. Leadwire
End Connection 1	Threaded
Environmental Conditions	5 - 95% RH Non-Condensing
Flow Co-Efficient (Cv)	3.5
Frequency Rating	50/60Hz
Power Consumption	7.7 VA
Pressure - Maximum	20 psi Differential, 125 psi Static
Temperature Range	125F Ambient, 50 - 240F Fluid
Timing Range	15 sec. Nominal Open
Valve Size	3/4 in.
Volts	24 VAC
