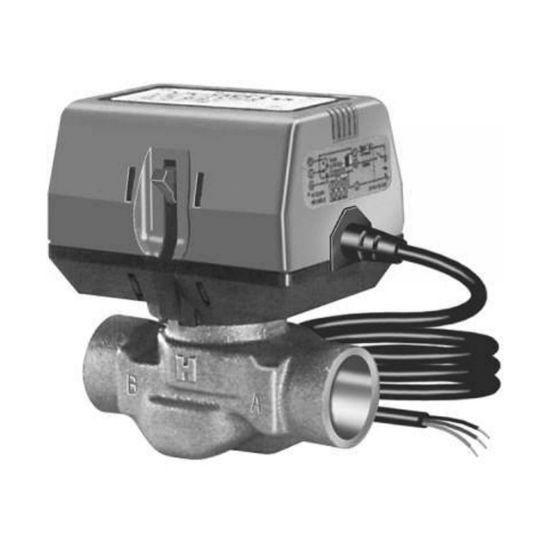

Picture of VC8711ZZ11 ZONE ACTUATOR

VC8711ZZ11 ZONE ACTUATOR

Honeywell Home VC8711ZZ11/U 24VAC 6 VA (Driving) Plastic Low Voltage Electric Valve Actuator with End Switch
Manufacturer: Honeywell Home
$0.00
Low Voltage Valve Actuator with End Switch, 3.7 in. Width, 2.8 in. Height, Plastic, Electric Actuator Type, AMP: 2.2A at 5 - 110 VAC/1A at 110 - 277 VAC Inductive, 5mA at 24 VAC min. DC Switching Capability, Depth: 2.7 in., Pressure - Maximum: 60 psid (Differential), CSA LR1322-367 Specifications - CSA Certified, Valve Operator: Lever Handle, 24 VAC at 60Hz Volts, 6 VA (Driving) Power Consumption, -40 to 150F Storage Temperature, 32 - 150F Ambient Temperature Rating, SPST, SPDT Configuration, 2 Number of Positions, 39 in. Leadwire Electrical Connection, 6 sec. Driving at 60Hz Run Time, 60Hz Frequency Rating
Products specifications
products.specs.attributename products.specs.attributevalue
Actuator Type Electric
AMP 2.2;1
Depth 2-7/10 in.
Height 2-4/5 in.
Material Plastic
Maximum Temperature 203
Pressure - Maximum 60 psi
Specifications - CSA Certified CSA LR1322-367
Valve Operator Lever Handle
Volts 24VAC
Width 3-7/10 in.
Product Type Actuators
Brand/Model Compatibility VC Series Valves
Specifications - UL Listed UL Recognized, File# MH11826
Weight 0.84 lb
Application Hvac
Origin Hungary
