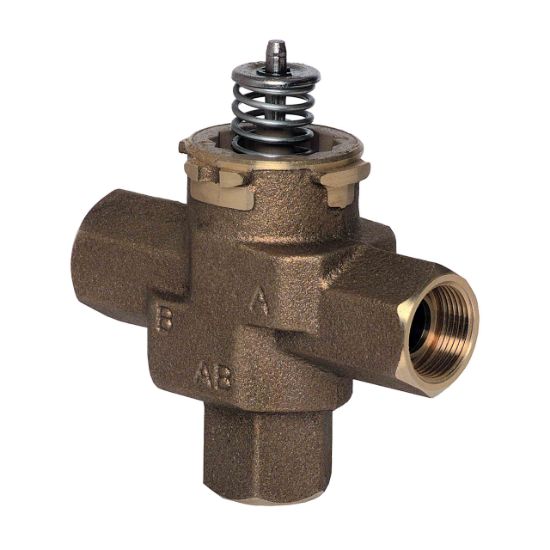

Picture of VCZMR6100/U 3 WAY 1" FEMALE NPT 8.6

VCZMR6100/U 3 WAY 1" FEMALE NPT 8.6

Honeywell Home VCZMR6100/U 3-way 1 in. FNPT VC Valve Assembly with 8.6 Cv and Linear Flow
Manufacturer: Honeywell Home
$0.00
Cartridge Cage Valve, 3-11/16 in. Length, 2-3/4 in. Width, 4-7/16 in. Height, Bronze, End Connection 1: FNPT, Pressure - Maximum: 300 psi, 60 psi Differential, Valve Size: 1 in., Temperature Range: 32 - 150F Ambient, 34 - 203F Fluid, 3-Way A-AB-B Body Pattern, 8.3 Flow Co-Efficient (Cv)
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Bronze Tones
End Connection FNPT x FNPT
End Connection 1 FNPT
End Connection 2 FNPT
Height 4-7/16 in.
Length 3-11/16 in.
Material Bronze
Maximum Temperature 203
Minimum Temperature 32
Pressure - Maximum 300 psi
Specifications - CSA Certified Yes
Valve Body Style 2-Way;3-Way
Valve Operator 3-Way
Valve Seat Material EPDM O-ring seals on Noryl piston
Valve Size 1 in.
Valve Type Zone Valve
Width 2-3/4 in.
Origin Hungary
Product Type Hydronic Zone Valves
Brand/Model Compatibility On-Off 2-position VC Actuators
Valve Body Material Brass
Fitting Size 1 1 in.
Fitting Size 2 1 in.
Fitting Sizes 1 in. x 1 in.
Size 1 in..
Valve Stem Stainless Steel
Style Name VC Series
Application 2-position
