HONVR8200A2132

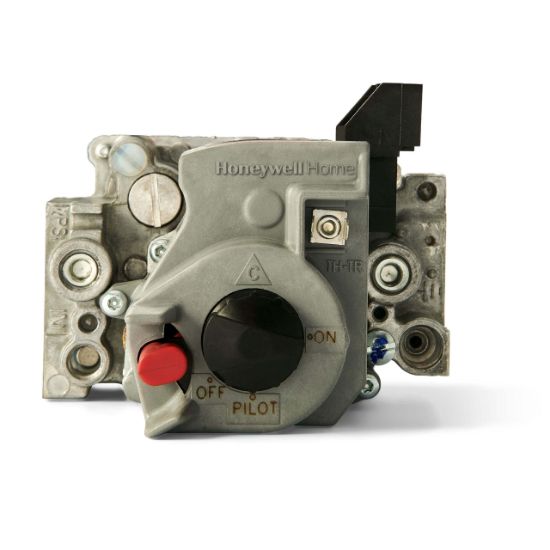

Honeywell Home VR8200A2132/U Gas Valve, 1/2 x 1/2 in.

Manufacturer: Honeywell Home

$0.00

Qty:

Gas Valve, 4-1/8 in. Width, 5-3/16 in. Height, 130000 btu/hr at 1 in. WC, 20000 btu/hr Minimum, 200000 btu/hr Maximum Natural Gas BTU, Inlet/Outlet: 1/2 x 1/2 in., 24 VAC Volts, Temperature Rating: 0 - 175F, 1/2 psi Pressure Rating, Fuel Type: Natural Gas (LP Gas with Included Conversion Kit), Body Pattern: Straight-Through, Ignition Type: Standing Pilot, Pressure Regulator Setpoint: 3.5 in. WC, 1/8 in. NPT with Plug Pressure Tapping, Electrical Connection: 1/4 in. Quick-Connect Male Terminals, Mounting Type: 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically, Standard Pressure Regulator, Opening Characteristics: Standard Opening, 60Hz Frequency Rating, Pilot Gas Outlet: 1/4 in. OD Tubing, Depth: 3-1/4 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4-1/8 in.
Height	5-3/16 po
Body Pattern	Straight-Through
BTU	130000 btu/hr at 1 in. WC, 20000 btu/hr Minimum, 200000 btu/hr Maximum Natural Gas
Depth	3-1/4 in.
Electrical Connection	1/4 in. Quick-Connect Male Terminals
Frequency Rating	60Hz
Fuel Type	Natural Gas (LP Gas with Included Conversion Kit)
Ignition Type	Standing Pilot
Inlet/Outlet	1/2 x 1/2 in.
Motor Type	0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically
Opening Characteristic	Standard Opening
Pilot Gas Outlet	1/4 in. OD Tubing
Pressure Rating	1/2 psi
Pressure Regulator	Standard
Pressure Regulator Setpoint	3.5 in. WC
Pressure Tapping	1/8 in. NPT with Plug
Temperature Rating	0 - 175F
Volts	24 VAC
