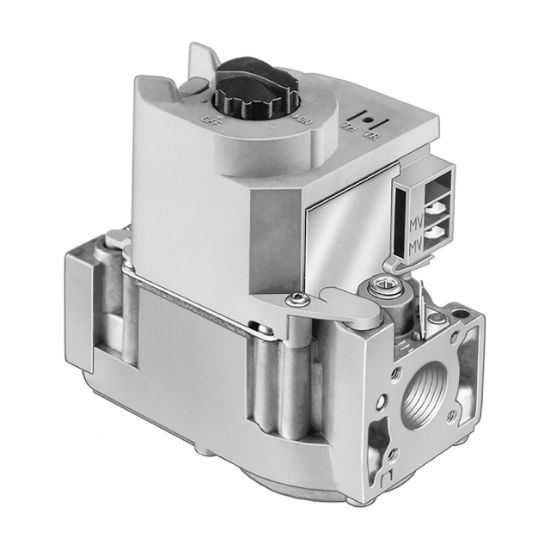

Picture of VR8205A2024 COMBINATION GAS CONTROL

VR8205A2024 COMBINATION GAS CONTROL

Resideo VR8205A2024/U 24V 1/2 in. x 1/2 in. Single Stage Standard Opening Standing Pilot Gas Control Valve
Manufacturer: Honeywell Home
$0.00
Combination gas controls for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances with capacities from 30 to 415 cfh. Controls include manual valve, two automatic operators, and pressure regulator. Provide two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted. Meet codes requiring dual safety shutoff. Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. All adjustments, wiring connections and pilot outlet are accessible from top of control. ON-OFF lighting sequence.
Products specifications
products.specs.attributename products.specs.attributevalue
Brand/Model Compatibility S89C, S89E, S89F, S87 Series 5 and later
Colour/Finish Category Blacks
Colour/Finish Name Black/Grey
Depth 2-11/16 in.
Fitting Size 1 1/2 in.
Fitting Size 2 1/2 in.
Fitting Sizes 1/2 in. x 1/2 in.
Height 4-15/16 in.
Ignition Type Direct Ignition
Inlet/Outlet 1/2 in. x 1/2 in.
Installation Type Vertical Mount
MBH 200
Size 1/2 in.. x 1/2 in..
Specifications - CSA Certified CSA International: 112395
Specifications - UL Listed UL MCCZ2.MH5323
Valve Body Style Straight Through
Valve Size 1/2 in.
Valve Type Gas Valve
Volts 24V
Width 4-1/8 in.
Fitting Type Straight
Origin Mexico
Product Type Gas Valves & Controls
Application Single Stage
Pressure - Low 1/2 psi
BTU (btu/hr) 150000
Capacity 150000 btu/hr
Pressure - High 1/2 psi
Stages Single Stage
Fuel Type Natural Gas
Pressure - Maximum 1/2 psi
