Picture of VR8205M2823T/U DUAL VLV GAS CNTRL(LEN)

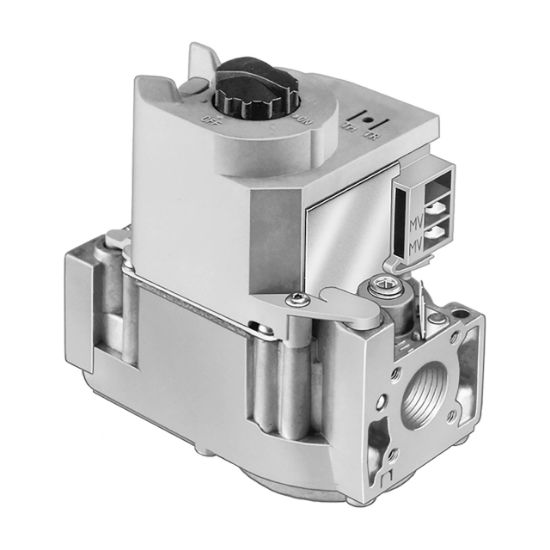

VR8205M2823T/U DUAL VLV GAS CNTRL(LEN)

Resideo VR8205M2823T/U 24V 1/2 in. x 1/2 in. Single Stage Standard Opening Standing Pilot Gas Control Valve
Manufacturer: Honeywell Home
$0.00
Combination gas controls for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances with capacities from 30 to 415 cfh. Controls include manual valve, two automatic operators, and pressure regulator. Provide two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted. Meet codes requiring dual safety shutoff. Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. All adjustments, wiring connections and pilot outlet are accessible from top of control. ON-OFF lighting sequence.
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Gas Valves & Controls
Brand/Model Compatibility S89C, S89E, S89F, S87 Series 5 and later
Colour/Finish Category Blacks
Colour/Finish Name Black
Fitting Size 1 1/2 in.
Fitting Sizes 1/2 in.
Height 4-63/100 in.
Ignition Type Direct Ignition
Installation Type Vertical Mount
Pressure - Low 1/2 psi
Specifications - CSA Certified CSA International: 112395
Specifications - UL Listed UL MH5323
Valve Body Style Straight Through
Weight 0.36 lb
Width 4-13/100 in.
Application Single Stage
Origin Mexico
BTU (btu/hr) 150000
Capacity 150000 btu/hr
Pressure - High 1/2 psi
Stages Single Stage
Volts 24V
