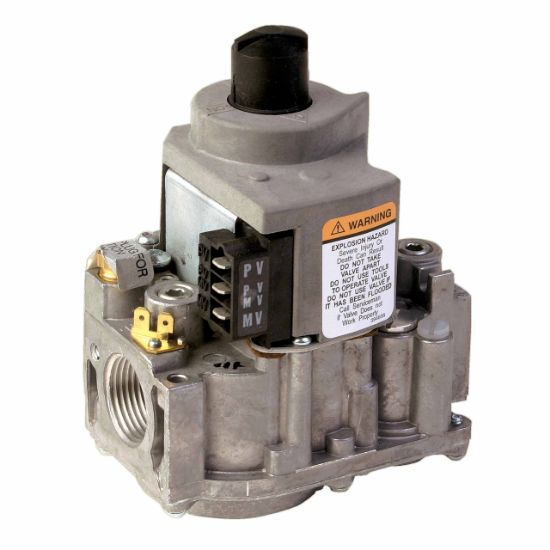

Picture of VR8245M2530 COMBINATION GAS CONTROL

VR8245M2530 COMBINATION GAS CONTROL

Honeywell Home VR8245M2530/U Gas Valve, 1/2 x 1/2 in.

Manufacturer: Honeywell Home

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4-1/16 in.
Height	5-3/8 po
Body Pattern	Straight-Through
BTU	150000 btu/hr at 1 in. WC, 20000 btu/hr Minimum, 200000 btu/hr Maximum Natural Gas
Depth	2-11/16 in.
Electrical Connection	1/4 in. Quick-Connect Male Terminals
Frequency Rating	50/60Hz
Fuel Type	Natural Gas (LP Gas with Included Conversion Kit)
Ignition Type	Direct Ignition, Intermittent Pilot
Inlet/Outlet	1/2 x 1/2 in.
Motor Type	0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically
Opening Characteristic	Standard Opening
Pilot Gas Outlet	1/4 in. OD Tubing
Pressure Rating	1/2 psi
Pressure Regulator	Standard
Pressure Regulator Setpoint	3.5 in. WC
Pressure Tapping	1/8 in. NPT with Plug
Temperature Rating	-40 to 175F
Volts	24 VAC
