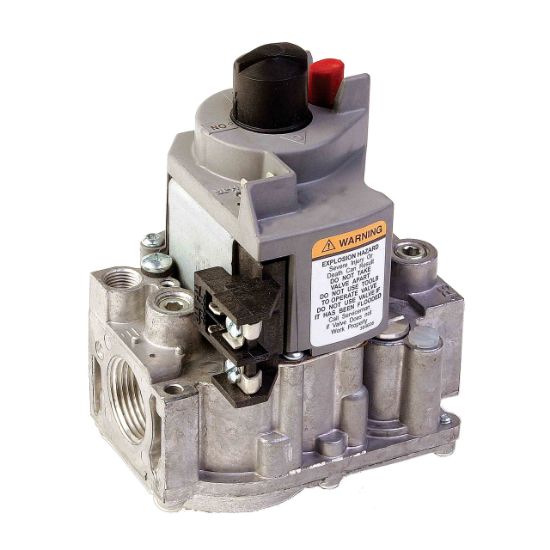

Picture of VR8300A4516/U 24 VAC SP GAS VLV 3/4 ST/O

VR8300A4516/U 24 VAC SP GAS VLV 3/4 ST/O

Resideo VR8300A4516/U 24V 3/4 in. x 3/4 in. Single Stage Standard Opening Standing Pilot Gas Control Valve
Manufacturer: Honeywell Home
$0.00
Gas Valve, 4-1/16 in. Width, 5-3/8 in. Height, 200000 btu/hr at 1 in. WC, 30000 btu/hr Minimum, 300000 btu/hr Maximum Natural Gas BTU, Inlet/Outlet: 3/4 x 3/4 in., 24 VAC Volts, Temperature Rating: 0 - 175F, 1/2 psi Pressure Rating, Fuel Type: Natural Gas (LP Gas with Included Conversion Kit), Body Pattern: Straight-Through with Flange, Ignition Type: Standing Pilot, Pressure Regulator Setpoint: 3.5 in. WC, 1/8 in. NPT with Plug Pressure Tapping, Electrical Connection: 1/4 in. Quick-Connect Male Terminals, Mounting Type: 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically, Standard Pressure Regulator, Opening Characteristics: Standard Opening, 60Hz Frequency Rating, Pilot Gas Outlet: 1/4 in. OD Tubing, Depth: 2-11/16 in.
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Blacks
Colour/Finish Name Black
Depth 2-11/16 in.
Fitting Size 1 3/4 in.
Fitting Size 2 3/4 in.
Fitting Sizes 3/4 in. x 3/4 in.
Height 5-3/8 in.
Ignition Type Standing Pilot
Inlet/Outlet 3/4 in. x 3/4 in.
Installation Type Vertical Mount
MBH 300
Size 3/4 in..
Specifications - CSA Certified CSA International: 112395
Specifications - UL Listed UL MCCZ2.MH5323
Valve Body Style Straight Through with Flange
Valve Size 3/4 in.
Valve Type Gas Valve
Volts 24V
Width 4-1/16 in.
Fitting Type Straight
Origin Mexico
Product Type Gas Valves & Controls
Length 2-69/100 in.
Application Single Stage
Pressure - Low 1/2 psi
BTU (btu/hr) 200000
Capacity 200000 btu/hr
Pressure - High 1/2 psi
Stages Single Stage
Fuel Type Natural Gas
Pressure - Maximum 1/2 psi
