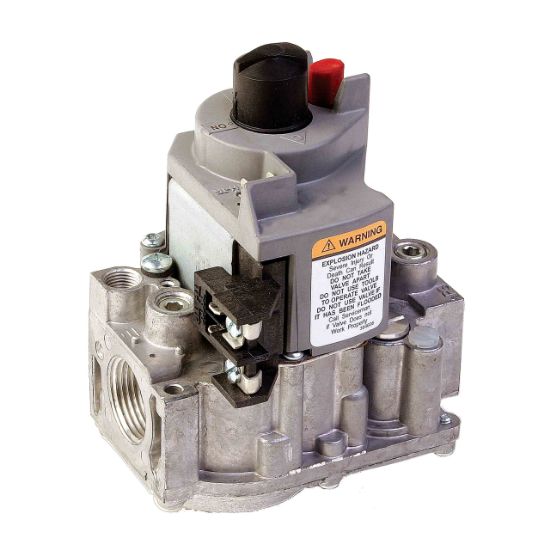

HONVR8300H4501

1-Stage Combination Gas Valve, VR Series, 4-1/16 in. Width, 5-3/8 in. Height, 200000 btu/hr at 1 in. WC, 30000 btu/hr Minimum, 300000 btu/hr Maximum BTU, Inlet/Outlet: 3/4 x 3/4 in., 24 VAC Volts, Temperature Rating: 0 - 175F, 1/2 psi Pressure Rating, Fuel Type: Natural Gas, Body Pattern: Straight-Through with Flange, Ignition Type: Standing Pilot, Pressure Regulator Setpoint: 3.5 in. WC, 1/8 in. NPT with Plug Pressure Tapping, Electrical Connection: 1/4 in. Quick Connect Male Terminal, Mounting Type: 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically, Standard Pressure Regulator, Opening Characteristic: Standard Opening, 60Hz Frequency Rating, Pilot Gas Outlet: 1/4 in. OD Tubing, Depth: 2-11/16 in.
