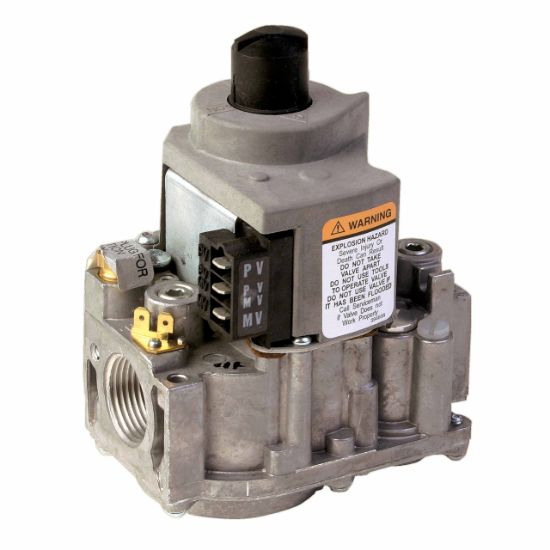

VR8304M4515 COMBINATION GAS CONTROL

Honeywell Home VR8304M4515/U 1-Stage Dual Gas Valve, 3/4 x 3/4 in., Natural Gas, 24 VAC, 1/2 psi

Manufacturer: Honeywell Home

$0.00

Qty:

1-Stage Dual Gas Valve, 5-1/16 in. Width, 5-3/8 in. Height, BTU: 30000 btu/hr Minimum, 415000 btu/hr Maximum, 3/4 x 3/4 in. Inlet/Outlet, 24 VAC Volts, Temperature Rating: -40 to 175F, 1/2 psi Pressure Rating, Fuel Type: Natural Gas (LP with Included Conversion Kit), Straight-Through Body Pattern, Intermittent Pilot Ignition Type, 3.5 in. WC Pressure Regulator Setpoint, 1/8 in. NPT with Plug Pressure Tapping, 1/4 in. Quick-Connect Male Terminals Electrical Connection, Mounting Type: 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically, Standard Pressure Regulator, Standard Opening Opening Characteristics, 60Hz Frequency Rating, 1/4 in. OD Tubing Pilot Gas Outlet, Depth: 2-11/16 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	5-1/16 in.
Height	5-3/8 in.
Body Pattern	Straight-Through
BTU	30000 btu/hr Minimum, 415000 btu/hr Maximum
Depth	2-11/16 in.
Electrical Connection	1/4 in. Quick-Connect Male Terminals
Frequency Rating	60Hz
Fuel Type	Natural Gas (LP with Included Conversion Kit)
Ignition Type	Intermittent Pilot
Inlet/Outlet	3/4 x 3/4 in.
Motor Type	0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically
Opening Characteristic	Standard Opening
Pilot Gas Outlet	1/4 in. OD Tubing
Pressure Rating	1/2 psi
Pressure Regulator	Standard
Pressure Regulator Setpoint	3.5 in. WC
Pressure Tapping	1/8 in. NPT with Plug
Temperature Rating	-40 to 175F
Volts	24 VAC
