VR8305P4279 COMB GAS CONTROL

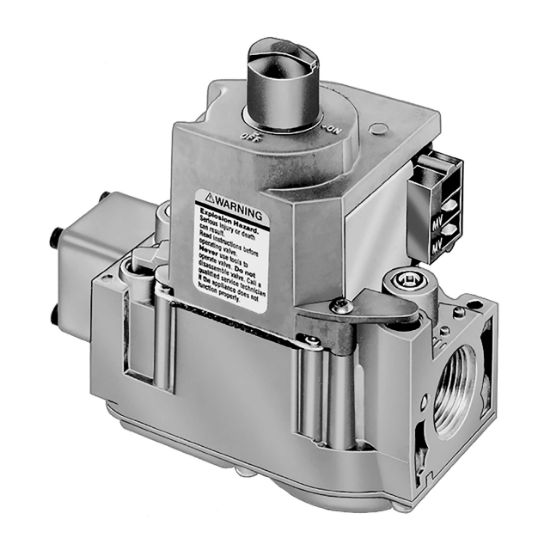

Honeywell Home VR8305P4279/U Gas Valve, 3/4 x 3/4 in.
Manufacturer: Honeywell Home
$0.00
Gas Valve, 4-1/16 in. Width, 5-3/8 in. Height, 300000 btu/hr at 1 in. WC, 30000 btu/hr Minimum, 415000 btu/hr Maximum Natural Gas BTU, Inlet/Outlet: 3/4 x 3/4 in., 24 VAC Volts, Temperature Rating: -40 to 175F, 1/2 psi Pressure Rating, Fuel Type: Natural Gas, Body Pattern: Straight-Through, Ignition Type: Direct Ignition, Pressure Regulator Setpoint: 0.9 in. WC Non-Adjustable Step Setting, 3.5 in. WC Full Rate, 1/8 in. NPT with Plug Pressure Tapping, Electrical Connection: 1/4 in. Quick-Connect Male Terminals, Mounting Type: 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically, Step Pressure Regulator, Opening Characteristics: Step Opening, 60Hz Frequency Rating, Depth: 2-11/16 in.
Products specifications
products.specs.attributename products.specs.attributevalue
Width 4-1/16 in.
Height 5-3/8 in.
Body Pattern Straight-Through
BTU 300000 btu/hr at 1 in. WC, 30000 btu/hr Minimum, 415000 btu/hr Maximum Natural Gas
Depth 2-11/16 in.
Electrical Connection 1/4 in. Quick-Connect Male Terminals
Frequency Rating 60Hz
Fuel Type Natural Gas
Ignition Type Direct Ignition
Inlet/Outlet 3/4 x 3/4 in.
Motor Type 0 - 90 Degree in Any Direction from the Upright Position of the Gas Control Knob, Including Vertically
Opening Characteristic Step Opening
Pressure Rating 1/2 psi
Pressure Regulator Step
Pressure Regulator Setpoint 0.9 in. WC Non-Adjustable Step Setting, 3.5 in. WC Full Rate
Pressure Tapping 1/8 in. NPT with Plug
Temperature Rating -40 to 175F
Volts 24 VAC
