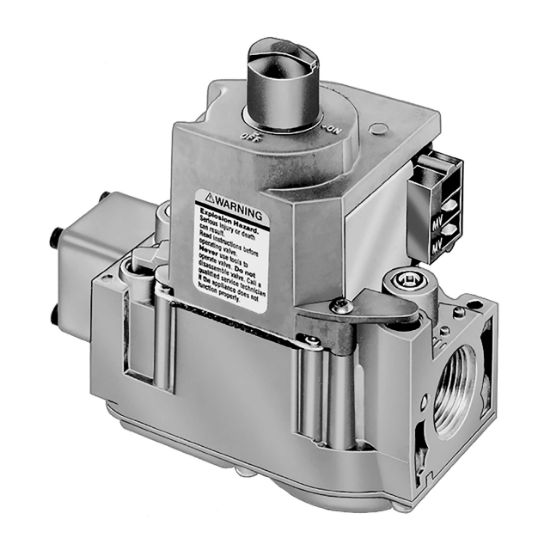

Picture of VR8305Q4153T/U DUAL VLV GAS CNTRL(LEN)

VR8305Q4153T/U DUAL VLV GAS CNTRL(LEN)

Resideo VR8305Q4153T/U 24V 3/4 in. x 3/4 in. Two Stage Standard Opening Direct Ignition Gas Control Valve
Manufacturer: Honeywell Home
$0.00
Combination gas control for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh. Controls include manual valve, two automatic operators, and pressure regulator. Provide two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted. Meet codes requiring dual safety shutoff. Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. ON-OFF lighting sequence. All adjustments, wiring connections and pilot outlet are accessible from top of control. Use VR8305 models with S89C,E,F and S87 series 5 and later.
Products specifications
products.specs.attributename products.specs.attributevalue
Valve Type Gas Valve
Product Type Gas Valves & Controls
Brand/Model Compatibility S89C, S89E, S89F, S87 Series 5 and later
Colour/Finish Category Greys
Colour/Finish Name Grey
Fitting Size 1 3/4 in.
Fitting Sizes 3/4 in.
Height 5-19/50 in.
Ignition Type Direct Ignition
Installation Type 0 Deg to 90 Deg in any direction from the upright position of the gas control knob, including vertically
Specifications - CSA Certified CSA International: 112395
Specifications - UL Listed UL File No. MH8191
Valve Body Style Straight Through
Weight 0.39 lb
Width 5-3/50 in.
Application Two Stage
Origin Mexico
BTU (btu/hr) 300000
Capacity 300000 btu/hr
Stages Two Stage
