HONYERM5220R8321

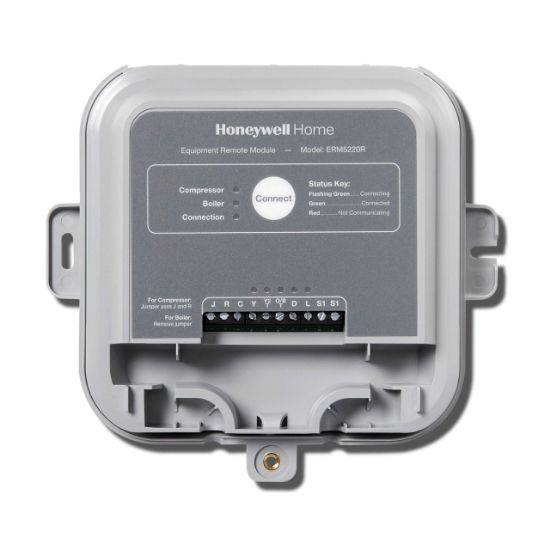

Honeywell Home YERM5220R8321/U Programmable Thermostat with Equipment Remote Module, 2H/2C or 2 Stage, 24 VAC

Manufacturer: Honeywell Home

$0.00

Qty:

Programmable Thermostat with Equipment Remote Module, 6-7/8 in. Width, 6-39/64 in. Height, Depth: 1-31/64 in., Programmable Programmability, Stages: Up to 2H/2C Heat Pumps or Up to 2 Stage Conventional Systems, 24 VAC Volts, 0 - 99% RH Humidity Range, Temperature Range: -40 to 155F Ambient Compressor, 30 - 130F Boiler, 10 sq-in Touchscreen Display Type, ERM-J, R, C, Y, Y2, O/B, D, L, S1, S1 Terminal Designations, 50/60Hz Frequency Rating, Equipment Remote Module (ERM) (ERM5220R1018) and VisionPro 8000 (TH8321R1001) Includes

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	6-7/8 in.
Height	6-39/64 in.
Depth	1-31/64 in.
Display Type	10 sq-in Touchscreen
Frequency Rating	50/60Hz
Humidity Range	0 - 99% RH
Programmability	Programmable
Stages	Up to 2H/2C Heat Pumps or Up to 2 Stage Conventional Systems
Temperature Range	-40 to 155F Ambient Compressor, 30 - 130F Boiler
Terminal Designations	ERM-J, R, C, Y, Y2, O/B, D, L, S1, S1
Volts	24 VAC
