HONYTH8321R1002

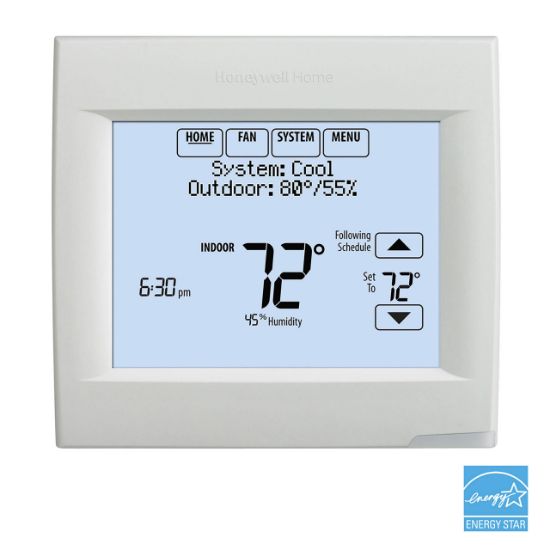

Honeywell Home YTH8321R1002/U VisionPRO 8000 7 day Programmable Thermostat Up to 3H/2C or Up to 2H/2C 18 - 30 VAC or 750 mV

Manufacturer: Honeywell Home

$0.00

Qty:

Commercial Programmable Thermostat, VisionPRO Series, 4-15/16 in. Width, 4-5/8 in. Height, Colour/Finish Name: Arctic White, Depth: 1-1/8 in., Battery or Hardwired Power Source, Programmability: 7 day Program or Non-Programmable, Stages: Up to 3H/2C Heat Pump or Up to 2H/2C Conventional, 18 - 30 VAC or 750 mV Volts, Auto or Manual Changeover, Humidity Range: 5 - 90% RH Non-Condensing, Setting Temperature Range: 40 - 90F Heating, 50 - 99F Cooling, Temperature Range: 32 - 120F Operating, Switch Position: HEAT-OFF-COOL-AUTO-EM.HEAT (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan), 10 sq-in Display, Mounting Type: Horizontal, Terminal Designations: R, Rc, C, W-O/B, W2-Aux/E, Y, Y2, G, A-L/A, K, U1, S1, Electrical Connection: Screw Terminals, 50/60Hz Frequency Rating, Differential Temperature: Plus or Minus 1F, Includes: TH8321R1001 VisionPRO 8000 Thermostat and THM6000R1002 RedLINK Internet Gateway

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4-15/16 in.
Height	4-5/8 in.
Changeover	Auto or Manual
Colour/Finish Name	Arctic White
Depth	1-1/8 in.
Differential Temperature	Plus or Minus 1F
Display Type	10 sq-in
Electrical Connection	Screw Terminals
Frequency Rating	50/60Hz
Humidity Range	5 - 90% RH Non-Condensing
Motor Type	Horizontal
Power Source	Battery or Hardwired
Programmability	7 day Program or Non-Programmable
Setting Temperature Range	40 - 90F Heating, 50 - 99F Cooling
Stages	Up to 3H/2C Heat Pump or Up to 2H/2C Conventional
Switch Position	HEAT-OFF-COOL-AUTO-EM.HEAT (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
Temperature Range	32 - 120F Operating
Terminal Designations	R, Rc, C, W-O/B, W2-Aux/E, Y, Y2, G, A-L/A, K, U1, S1
Volts	18 - 30 VAC or 750 mV
