HYDSP40A12001

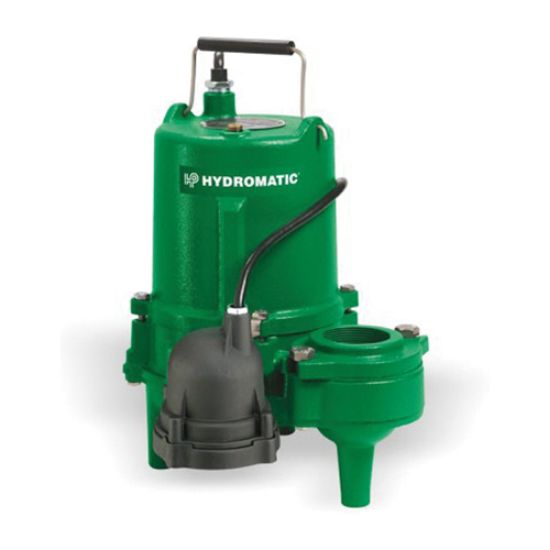

Hydromatic SP40A1 20 Dark Green Cast Iron Automatic Diaphragm Switch Sewage Pump, 115V at 60Hz, 7.5A Full Load, 1 PH, 4/10 hp, 20 ft. Cord, 1650 RPM

Manufacturer: Hydromatic

$0.00

Qty:

Automatic Diaphragm Switch Sewage Pump, Model: SP40A1 20, 10-3/4 in. Length, 8-1/16 in. Width, 14-1/16 in. Height, AMP: 7.5A Full Load, Colour/Finish Name: Dark Green, 20 ft. Cord, Discharge Size: 2 in. NPT, Horsepower: 4/10 hp, Impeller: 2-Vane, Non-Clog, Pump Body Material: Cast Iron, PSC Class A Pump Motor, 1 PH Pump, RPM: 1650 RPM, 115V Volts, 60Hz Frequency Rating, Turn On/Turn Off Levels: Turn-on 12-1/4 in./Turn-off 3-3/4 in., Temperature Rating: 140F Ambient

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10-3/4 in.
Width	8-1/16 in.
Height	14-1/16 in.
AMP	7.5A Full Load
Colour/Finish Name	Dark Green
Cord Length	20 ft.
Discharge Size	2 in. NPT
Frequency Rating	60Hz
Horsepower	4/10 hp
Impeller	2-Vane, Non-Clog
Pump Body Material	Cast Iron
Pump Motor Type	PSC Class A
Pump Phase	1 PH
RPM	1650 RPM
Temperature Rating	140F Ambient
Turn On/Turn Off Levels	Turn-on 12-1/4 in./Turn-off 3-3/4 in.
Volts	115V
