HYDSPD100AH220

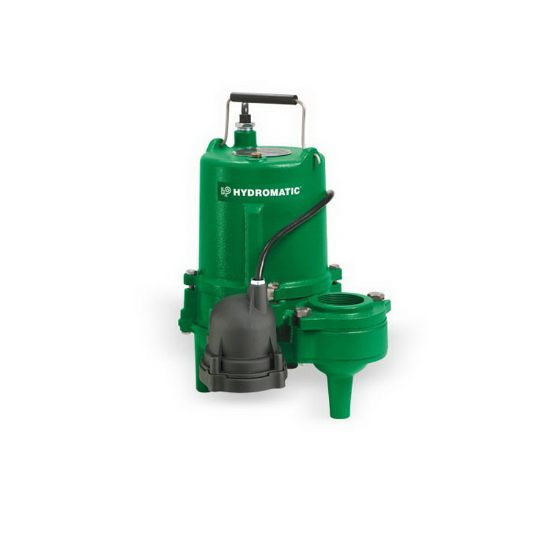

Hydromatic SPD100AH2 Cast Iron Automatic High Head Submersible Effluent Pump, 230V at 60Hz, 9.9A Full Load, 1 hp, 20 ft. Cord, 3450 RPM, Up to 142 gpm

Manufacturer: Hydromatic

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12-1/8 in.
Width	8-3/4 in.
Height	15-3/4 in.
Material	Cast Iron
AMP	9.9A Full Load
Cord Length	20 ft.
Discharge Connection	NPT
Discharge Size	2 in.
Fitting Size 1	3/4 in. Solid Handling
Frequency Rating	60Hz
Horsepower	1 hp
Impeller	2-Vane, Non-Clog
Material Type	Class 30
Maximum Feet of Head	Up to 64 ft.
Pump Motor Type	Split Phase
Pump Phase	1 PH
RPM	3450 RPM
Specifications - CSA Certified	C/US CSA 108
Specifications - UL Listed	Yes
Temperature Rating	140F Liquid
Volts	230V
