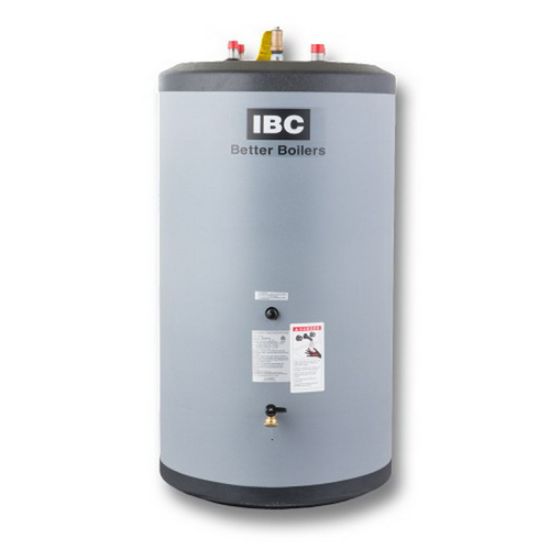

C++ IBC 40 40 GALLON INDIRECT TANK

IBC 40 Stainless Steel High Performance Indirect Water Heater, 40 gal, 117870 btu/hr, 193 gph at 140F, 150 psi

Manufacturer: IBC Technologies

$0.00

Qty:

Indirect Water Heater, 44 in. Height, Material: 316L Stainless Steel, 117870 btu/hr BTU, 40 gal Capacity, Diameter: 23-1/2 in., End Connection 1: NPT, End Connection 2: NPT, Energy Star Compliant: Yes,: 193 gph at 140F, 254 gph at 115F, Flow Rate: 14 gpm, Maximum Temperature: 180F, Pressure - Maximum: 150 psi, Specifications - CSA Certified: CSA C22.2 No. 110-94, Specifications - UL Listed: Yes, S

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	44 po
Material	Stainless Steel
BTU	117870 btu/hr
Capacity	40 gal
Continuous Draw	157 gph at 140F, 218 gph at 115F
Diameter	23-1/2 in.
End Connection 1	NPT
End Connection 2	NPT
Energy Star Compliant	Yes
First Hour Delivery	193 gph at 140F, 254 gph at 115F
Material Type	316 SS
Maximum Temperature	180F
Pressure - Maximum	150 psi
Specifications - CSA Certified	CSA C22.2 No. 110-94
Specifications - UL Listed	Yes
Supply Pipe Connection Size	3/4 in. Domestic Water Inlet and Outlet, 1 in. Boiler Water Inlet and Outlet
Water Heater Type	High Performance
