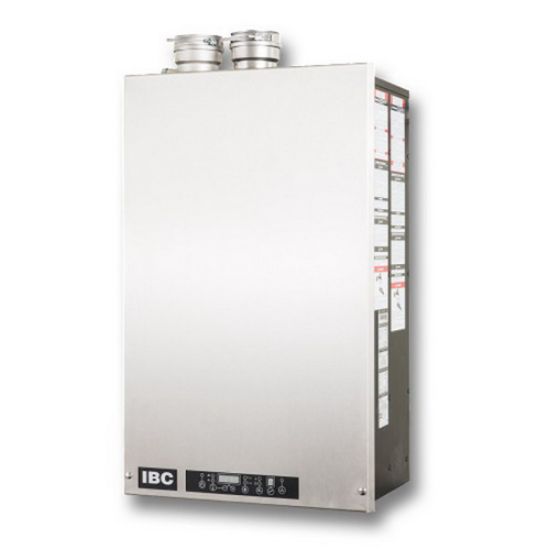

Picture of DC33160 33-160MBH HE CONDENSING BOILER

DC33160 33-160MBH HE CONDENSING BOILER

IBC DC 33-160 Natural/Propane Gas Dual Combination Condensing Boiler, 120 VAC, 33 - 160 MBH Input, 30400 - 140000 btu/hr, 0.5 - 4 gpm

Manufacturer: IBC Technologies

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	19.8 in.
Width	11.1 in.
Height	44.9 po
AFUE	94%
BTU	30400 - 140000 btu/hr
Energy Star Compliant	Yes
Frequency Rating	60Hz
Fuel Type	Natural/Propane Gas
Input	33 - 160 MBH
Pressure - Maximum	150psig Domestic Hot Water Coil, 43.5psig Space Heating Coil, 5 - 14 in. WC Gas
Return Pipe Connection	1 in. MNPT Heating Water
Specifications - ANSI	ANSI Z21.10.3, ANSI Z223.1, CSD-1
Specifications - ASME	ASME CSD-1
Specifications - CSA Certified	CSA B149.1
Supply Pipe Connection Size	1 in. MNPT Heating Water, 1/2 in. MNPT Gas, 3/4 in. MNPT Hot and Cold Domestic Water
Temperature Rating	32 - 122F Ambient, 50 - 194F Space Heating, 104 - 149 Domestic Hot Water
Volts	120 VAC
Watts	164W, 9.7 - 46.9kW Input, 8.9 - 41kW Output
