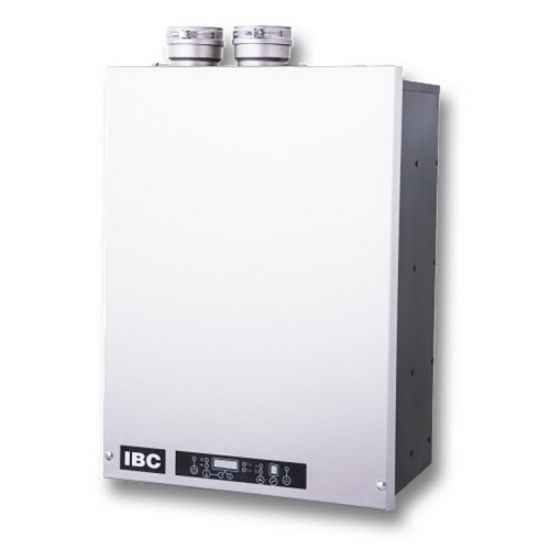

Picture of C++ HC20125 20-125MBH HE CONDENSING BOIL

C++ HC20125 20-125MBH HE CONDENSING BOIL

IBC HC 20-125 Wall Mount Natural/Propane Gas Condensing Boiler, 0.5 gal, 120 VAC, 20 - 125 MBH Input, 18600 - 110800 btu/hr Heat, 3 - 11 gpm

Manufacturer: IBC Technologies

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	19.8 in.
Width	11.1 in.
Height	39.9 po
AFUE	95%
BTU Heat Rating	18600 - 110800 btu/hr
Capacity	0.5 gal
Energy Star Compliant	Yes
Frequency Rating	60Hz
Fuel Type	Natural/Propane Gas
Input	20 - 125 MBH
Motor Type	Wall
Pressure - Maximum	43.5psig Operating, 5 - 14 in. WC Gas
Specifications - ANSI	ANSI Z223.1, ANSI Z21.13-2014, CSD-1
Specifications - ASME	ASME CSD-1
Specifications - CSA Certified	CSA B149.1, 4.9-2014, C22.2 No. 1, C22.1
Supply Pipe Connection Size	1 in. MNPT Water Inlet and Outlet, 1/2 in. MNPT Gas Inlet
Temperature Rating	32 - 122F Ambient, 50 - 194F Water
Volts	120 VAC
Watts	130W, 5.6 - 36.6kW Input, 5.4 - 32.5kW Output
