IMP515CV

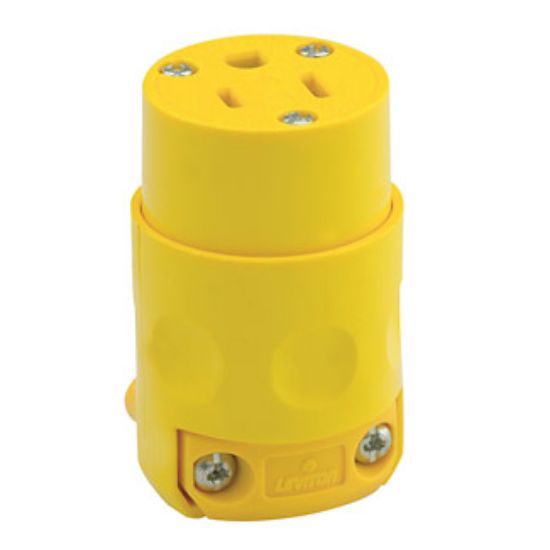

515CV 2-Pole 3-Wire Yellow PVC Straight Blade Commercial Grade Grounding Connector, 15A, 125V, 5-15R
Manufacturer: Nedco
$0.00
Straight Blade Commercial Grade Grounding Connector, 2.61 in. Height, PVC, Specifications - UL Listed: Yes, Colour/Finish Name: Yellow, 125V Volts, AMP: 15A, Number of Poles: 2, Electrical Connection: Female, Specifications - CSA Certified: C22.2 No. 42, Specifications - NEMA: NEMA 5-15R, WD6, Wire Gauge: 18 - 12 awg, Number of Wire: 3, -40 to 60C Operating Temperature, Cord Diameter: 0.245 - 0.7 in.
Products specifications
products.specs.attributename products.specs.attributevalue
Height 2.61 in.
Material PVC
AMP 15A
Colour/Finish Name Yellow
Electrical Connection Female
Number of Poles 2
Operating Temperature -40 to 60C
Specifications - CSA Certified C22.2 No. 42
Specifications - NEMA NEMA 5-15R, WD6
Specifications - UL Listed Yes
Volts 125V
Wire Gauge 18 - 12 awg
