Picture of 052121 1/2" TRUE UNION C/V IPEX

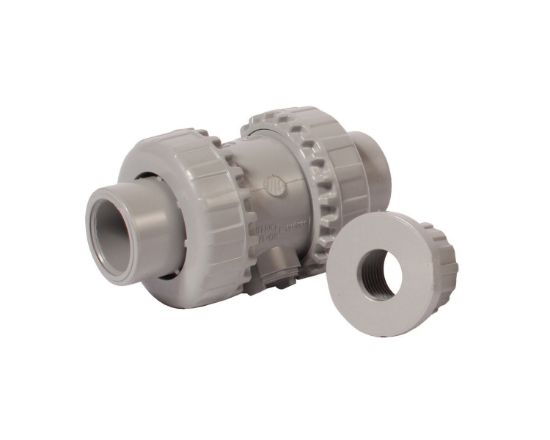

052121 1/2" TRUE UNION C/V IPEX

Ipex 052121 Xirtec SXE Series 1/2 in. Socket x Threaded True Union CPVC Ball Check Valve
Manufacturer: Ipex
$0.00
The SXE is a complement to the VXE/VEE ball valve product lines, with many of the same features providing trouble free service for industrial, OEM/water service applications. A true union design allows for simple maintenance, while the EasyFit multifunction handle can be used as a tool for ball seal carrier adjustment,/for tightening union nuts precisely. The internal design is optimized for maximum flow/minimum turbulence, preventing ball sticking/chatter. Just a few psi of back pressure for positive shutoff in both vertical/horizontal installations. The SXE valve is made from CPVC/uses EPDM seals in combination with its socket/threaded connections.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Socket x Threaded
End Connection 1 Socket
End Connection 2 Threaded
Installation Type Horizontal;Vertical
Material Plastic
Material Type CPVC
Maximum Temperature 73
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Style Name Xirtec SXE Series
Valve Operator True Union
Valve Size 1/2 in.
Valve Type Ball Check Valve
Weight 2.73 lb
Origin Italy
Product Type Ball Valves
Valve Body Material Plastic
Height 2-19/25 in.
Length 5-91/100 in.
Pressure - High 232 psi
Valve Body Style True Union
Width 2-3/4 in.
Valve Seat Material EPDM
