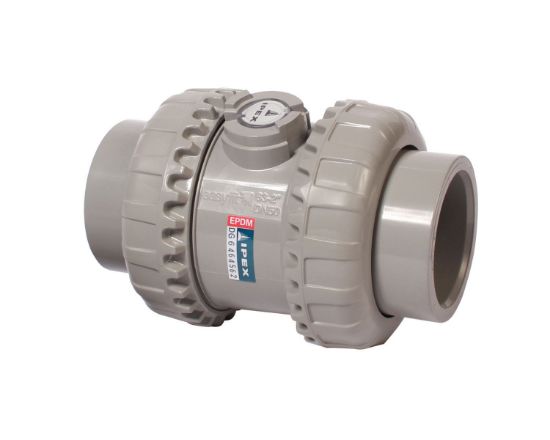

Picture of 052126 2" TRUE UNION C/V IPEX

052126 2" TRUE UNION C/V IPEX

Ipex 052126 Xirtec SXE Series 2 in. Socket x Threaded CPVC Ball Check Valve
Manufacturer: Ipex
$0.00
The SXE is a complement to the VXE/VEE ball valve product lines, with many of the same features providing trouble free service for industrial, OEM/water service applications. A true union design allows for simple maintenance, while the EasyFit multifunction handle can be used as a tool for ball seal carrier adjustment,/for tightening union nuts precisely. The internal design is optimized for maximum flow/minimum turbulence, preventing ball sticking/chatter. Just a few psi of back pressure for positive shutoff in both vertical/horizontal installations. The SXE valve is made from CPVC/uses EPDM seals in combination with its socket/threaded connections.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Socket x Threaded
End Connection 1 Socket
End Connection 2 Threaded
Installation Type Horizontal;Vertical
Material Plastic
Material Type CPVC
Maximum Temperature 73
Pressure - Maximum 232 psi
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Style Name Xirtec SXE Series
Valve Operator True Union
Valve Size 2 in.
Valve Type Check Valve
Weight 0.24 lb
Origin Italy
Product Type Check Valves
Height 5-91/100 in.
Length 8-7/10 in.
Valve Body Style True Union
Width 6-2/3 in.
Valve Seat Material EPDM
