JEN201CJQ

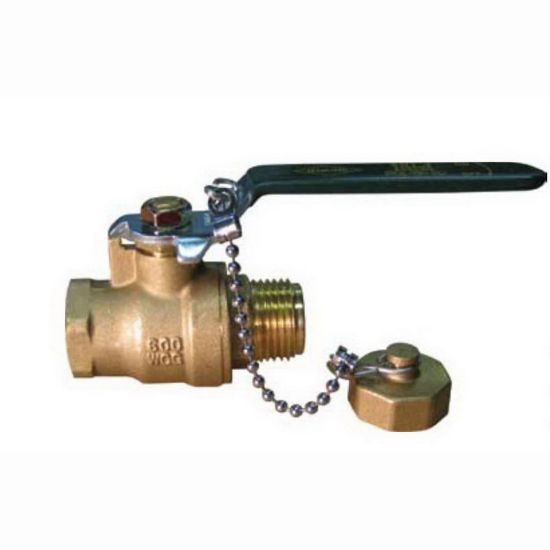

Jenkins 201CJ-3/4 Forged Brass Lever Handle Full Port 2-Piece Ball Valve with Hose Cap and Chain, 3/4 in., Threaded

Manufacturer: Jenkins

$0.00

Qty:

Ball Valve with Hose Cap and Chain, Model: 201CJ, 3.15 in. Length, Material: Forged Brass, End Connection 1: Threaded, End Connection 2: Threaded, Maximum Temperature: 400F, Pressure - Maximum: 600 psi CWP, Specifications - MSS: MSS SP-110, Valve Body Style: 2-Piece, Valve Operator: Lever Handle, Full Port Valve Port Opening, PTFE Valve Seat, Valve Size: 3/4 in., Opening Size: 3/4 in., PTFE Stem Valve Packing, Steel Handle, Dimension: 1.85 in. Inlet Centre to Top of Handle, 3.94 in. Handle Length, Specifications - ASTM: ASTM B-124 C-37700, ASTM B-16 C-36000, ASTM A-283-D, Brass Valve Stem, Brass Ball Valve Trim

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3.15 in.
Material	Forged Brass
Dimension	1.85 in. Inlet Centre to Top of Handle, 3.94 in. Handle Length
End Connection 1	Threaded
End Connection 2	Threaded
Handle Material	Steel
Maximum Temperature	400F
Opening Size	3/4 in.
Pressure - Maximum	600 psi CWP
Specifications - MSS	MSS SP-110
Valve Body Style	2-Piece
Valve Operator	Lever Handle
Valve Packing Material	PTFE Stem
Valve Port Opening	Full Port
Valve Seat Material	PTFE
Valve Size	3/4 in.
Valve Stem Material	Brass
Valve Trim Material	Brass Ball
