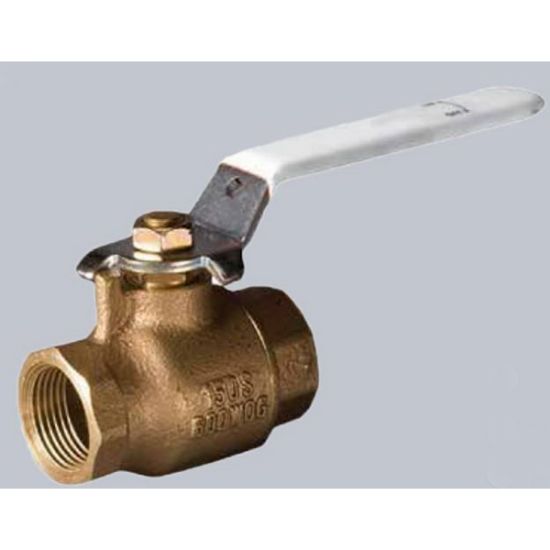

Picture of LF201J 030 LLC 3" THRD BALL VLV

LF201J 030 LLC 3" THRD BALL VLV

Jenkins LF201J Forged Brass Lever Handle Full Port 2-Piece Ball Valve, 3 in., Threaded
Manufacturer: Jenkins
$0.00
Ball Valve, Model: LF201J, 5.16 in. Length, Forged Brass, End Connection 1: Threaded, End Connection 2: Threaded, Lead Law Compliant: Yes, 400F Maximum - Temperature, Pressure - Maximum: 600 psi CWP at 100F, Specifications - MSS: MSS SP-110, Specifications - NSF: NSF 61G and 61-8, Specifications - NSF Certified: Yes, Valve Body Style: 2-Piece, Valve Operator: Lever Handle, Full Port Valve Port Opening, PTFE Valve Seat, Valve Size: 3 in., 2.48 in. Opening Size, Teflon PTFE Stem Valve Packing Material, Steel Handle, Dimension: 3-1/2 in. Inlet Centre to Top of Handle, 7.87 in. Handle Length, Specifications - ASTM: ASTM B-283 C-46400, ASTM B-16 C-36000, ASTM A-283-D, Brass Valve Stem, Forged Brass Ball Valve Trim
Products specifications
products.specs.attributename products.specs.attributevalue
Length 5.16 in.
Material Forged Brass
Dimension 3-1/2 in. Inlet Centre to Top of Handle, 7.87 in. Handle Length
End Connection 1 Threaded
End Connection 2 Threaded
Handle Material Steel
Lead Law Compliant Yes
Maximum Temperature 400F
Opening Size 2.48 in.
Pressure - Maximum 600 psi CWP at 100F
Specifications - MSS MSS SP-110
Specifications - NSF NSF 61G and 61-8
Specifications - NSF Certified Yes
Valve Body Style 2-Piece
Valve Operator Lever Handle
Valve Packing Material Teflon PTFE Stem
Valve Port Opening Full Port
Valve Seat Material PTFE
Valve Size 3 in.
Valve Stem Material Brass
Valve Trim Material Forged Brass Ball
