LF202J 014 LLC 1-1/2" C X C BALL VLV

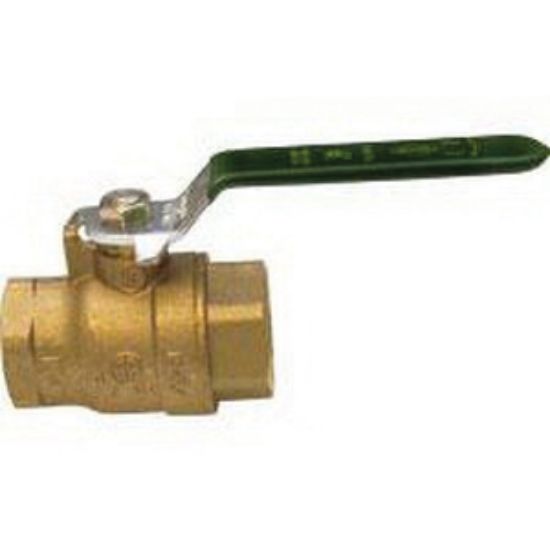

Jenkins LF202J Lead Free Forged Brass Lever Handle Full Port 2-Piece Ball Valve, 1-1/2 in., Solder (Copper)

Manufacturer: Jenkins

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	4.29 in.
Material	Forged Brass
Dimension	2.56 in. Inlet Centre to Top of Handle, 5.12 in. Handle Length
End Connection 1	Solder (Copper)
End Connection 2	Solder (Copper)
Handle Material	Steel
Lead Law Compliant	Yes
Maximum Temperature	400F
Opening Size	1-1/2 in.
Pressure - Maximum	600 psi CWP at 100F
Recommended Valve Application	Water
Specifications - MSS	MSS SP-110
Specifications - NSF	NSF 61G and 61-8
Specifications - NSF Certified	Yes
Valve Body Style	2-Piece
Valve Operator	Lever Handle
Valve Packing Material	Teflon PTFE Stem
Valve Port Opening	Full Port
Valve Seat Material	Teflon PTFE
Valve Size	1-1/2 in.
Valve Stem Material	Brass
Valve Trim Material	Forged Brass Ball Disc
