A19AAF-12C TEMP CONTROL 25-225 RNG SPDT

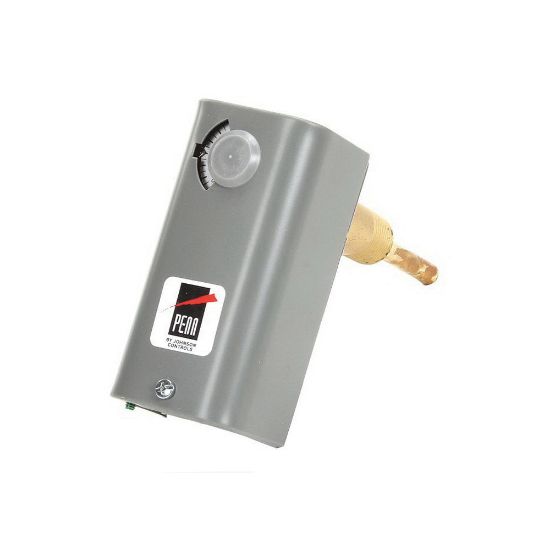

Johnson Controls A19AAF-12C Grey/Galvanized Steel 1-Stage Remote Bulb Temperature Control, 25 - 225F, 24 - 277 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

1-Stage Remote Bulb Temperature Control, A19 Series, 4-3/8 in. Length, 2-1/8 in. Width, 4-3/8 in. Height, Material: Steel, Sensor Type: Bulb, Colour/Finish Name: Grey/Galvanized, Switch Configuration: SPDT, Depth: 1-13/16 in., Bulb Size: 3 in. Length x 3/8 in. Diameter, 10 ft. Capillary Length, 24 - 277 VAC Volts, Control Range: 25 - 225F, Contact Rating: FLA: 15A at 120 VAC, 3A at 240 VAC, Locked Rotor: 36A at 120 VAC, 18A at 240 VAC, Inductive: 6A at 120 VAC, 3.4A at 208 VAC, 3A at 240 VAC, Resistive: 10A at 120 - 277 VAC, 125 VA Pilot Duty, Mounting Type: Flat Surface, NEMA 1 Enclosure, Switch Action: Open/Close on Rise, Differential Temperature: 3.5F

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-3/8 in.
Width	2-1/8 in.
Height	4-3/8 po
Material	Steel
Bulb Size	3 in. Length x 3/8 in. Diameter
Capillary Length	10 ft.
Colour/Finish Name	Grey/Galvanized
Contact Rating	FLA: 15A at 120 VAC, 3A at 240 VAC, Locked Rotor: 36A at 120 VAC, 18A at 240 VAC, Inductive: 6A at 120 VAC, 3.4A at 208 VAC, 3A at 240 VAC, Resistive: 10A at 120 - 277 VAC, 125 VA Pilot Duty
Control Range	25 - 225F
Depth	1-13/16 in.
Differential Temperature	3.5F
Enclosure	NEMA 1
Motor Type	Flat Surface
Sensor Type	Bulb
Switch Action	Open/Close on Rise
Switch Configuration	SPDT
Volts	24 - 277 VAC
