JOCA19ABA40C

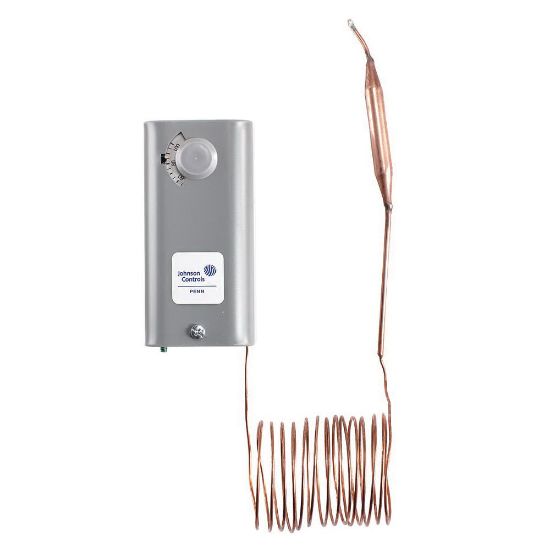

Johnson Controls A19ABA-40CQ Grey/Galvanized Steel 1-Stage Remote Bulb Temperature Control, -30 to 100F, 120/208/240 VAC

Manufacturer: Johnson Controls

$0.00

Qty:

1-Stage Remote Bulb Temperature Control, A19 Series, 4-3/8 in. Length, 2-1/8 in. Width, 4-3/8 in. Height, Steel, Bulb Sensor Type, Colour/Finish Name: Grey/Galvanized, SPST Switch Configuration, Depth: 1-13/16 in., Bulb Size: 3/8 in. Diameter x 4 in. Length, 6 ft. Capillary Length, 120/208/240 VAC Volts, -30 to 100F Control Range, FLA : 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120 VAC, 55.2A at 208 VAC, 48A at 240 VAC, Non-Inductive: 16 and 22A at 120 - 277 VAC, 125 VA at 24 to 600 VAC Pilot Duty Contact Rating, Mounting Type: Flat Surface, Switch Action: Close on Rise, Differential Temperature: 3 - 12F

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-3/8 in.
Width	2-1/8 in.
Height	4-3/8 po
Material	Steel
Bulb Size	3/8 in. Diameter x 4 in. Length
Capillary Length	6 ft.
Colour/Finish Name	Grey/Galvanized
Contact Rating	FLA: 16A at 120 VAC, 9.2A at 208 VAC, 8A at 240 VAC, Locked Rotor: 96A at 120 VAC, 55.2A at 208 VAC, 48A at 240 VAC, Non-Inductive: 16 and 22A at 120 - 277 VAC, 125 VA at 24 to 600 VAC Pilot Duty
Control Range	-30 to 100F
Depth	1-13/16 in.
Differential Temperature	3 - 12F
Motor Type	Flat Surface
Sensor Type	Bulb
Switch Action	Close on Rise
Switch Configuration	SPST
Volts	120/208/240 VAC
